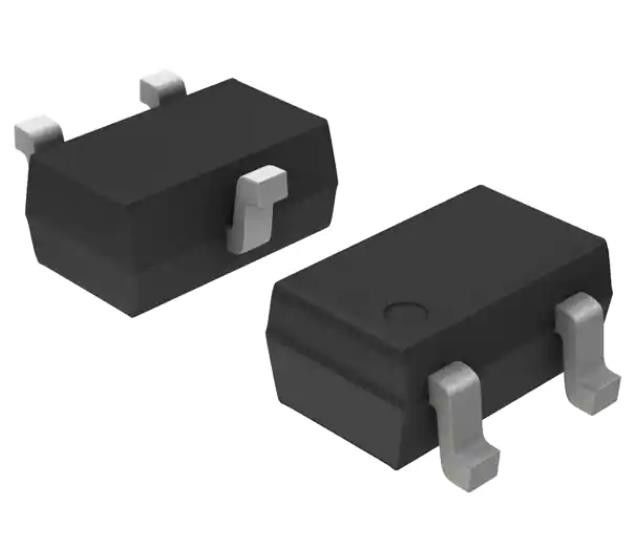

MMBZ27VCWT1G 38V Clamp 1A Ipp Tvs Diode Surface Mount SC-70-3 (SOT323)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMBZ27VCWT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Zener: | 2 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 22V | Voltage - Breakdown (Min): | 25.65V |
| Voltage - Clamping (Max) @ Ipp: | 38V | Current - Peak Pulse (10/1000µs): | 1A |
| Power Line Protection: | No | Applications: | General Purpose |
Product Description
MMBZ27VCWT1G 38V Clamp 1A Ipp Tvs Diode Surface Mount SC-70-3 (SOT323)
Specifications of MMBZ27VCWT1G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 25.65V |
| Voltage - Clamping (Max) @ Ipp | 38V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Base Product Number | MMBZ27 |
Features of MMBZ27VCWT1G
• SC−70 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
• Working Peak Reverse Voltage Range − 22 V
• Standard Zener Breakdown Voltage − 27 V
• Peak Power − 40 W @ 1.0 ms (Bidirectional), per Figure 4 Waveform
• ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
• Low Leakage < 100 nA
• Flammability Rating: UL 94 V−O
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of MMBZ27VCWT1G
These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability.
Environmental & Export Classifications of MMBZ27VCWT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
