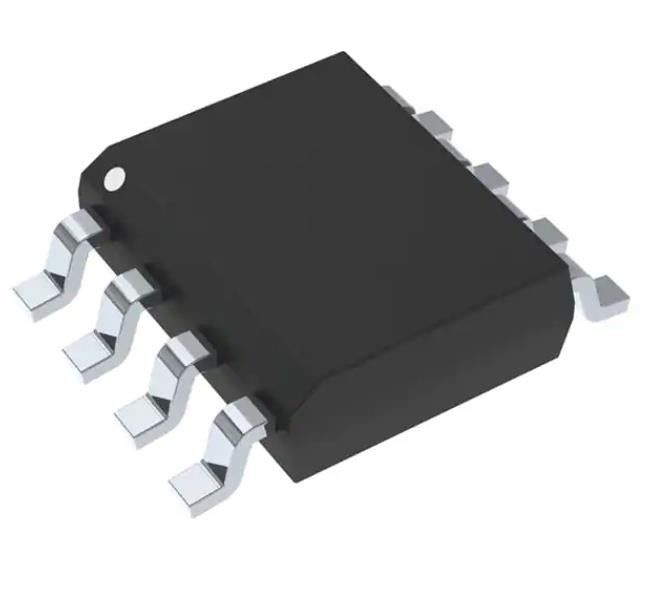

MC33272ADR2G Integrated Circuit Chip General Purpose Amplifier 2 Circuit 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC33272ADR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | General Purpose: | 2 |
|---|---|---|---|
| Output Type: | - | Gain Bandwidth Product: | 24 MHz |
| Slew Rate: | 10V/µs | Voltage - Input Offset: | 100 µV |
| Current - Input Bias: | 300 NA | Current - Supply: | 2.15mA (x2 Channels) |
Product Description
MC33272ADR2G Integrated Circuit Chip General Purpose Amplifier 2 Circuit 8-SOIC
Specifications of MC33272ADR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 24 MHz |
| Current - Input Bias | 300 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 2.15mA (x2 Channels) |
| Current - Output / Channel | 37 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MC33272 |
Features of MC33272ADR2G
• Input Offset Voltage Trimmed to 100 V (Typ)
• Low Input Bias Current: 300 nA
• Low Input Offset Current: 3.0 nA
• High Input Resistance: 16 M
• Low Noise: 18 nV/ √ Hz @ 1.0 kHz
• High Gain Bandwidth Product: 24 MHz @ 100 kHz
• High Slew Rate: 10 V/s
• Power Bandwidth: 160 kHz
• Excellent Frequency Stability
• Unity Gain Stable: w/Capacitance Loads to 500 pF
• Large Output Voltage Swing: +14.1 V/ −14.6 V
• Low Total Harmonic Distortion: 0.003%
• Power Supply Drain Current: 2.15 mA per Amplifier
• Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V
• ESD Diodes Provide Added Protection to the Inputs
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• Pb−Free Packages are Available
Applications of MC33272ADR2G
The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts.
