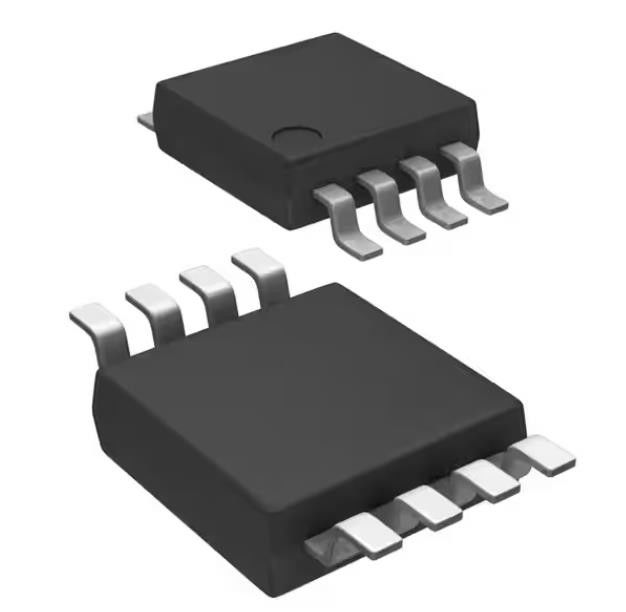

MC100EPT23DTR2G Mixed Signal Translator Unidirectional 1 Circuit 2 Channel 8-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC100EPT23DTR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Translator Type: | Mixed Signal | Channel Type: | Unidirectional |
|---|---|---|---|
| Number Of Circuits: | 1 | Channels Per Circuit: | 2 |
| Input Signal: | CML, LVDS, LVPECL | Output Signal: | LVTTL, LVCMOS |
| Output Type: | Non-Inverted | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
MC100EPT23DTR2G Mixed Signal Translator Unidirectional 1 Circuit 2 Channel 8-TSSOP
Specifications of MC100EPT23DTR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Mfr | onsemi |
| Series | 100EPT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Translator Type | Mixed Signal |
| Channel Type | Unidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Input Signal | CML, LVDS, LVPECL |
| Output Signal | LVTTL, LVCMOS |
| Output Type | Non-Inverted |
| Data Rate | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | 100EPT23 |
Features of MC100EPT23DTR2G
• 1.5 ns Typical Propagation Delay
• Maximum Operating Frequency > 275 MHz
• LVPECL/LVDS/CML Inputs, LVTTL/LVCMOS Outputs
• 24 mA LVTTL Outputs
• Operating Range:
♦ VCC = 3.0 V to 3.6 V with GND = 0 V
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
Applications of MC100EPT23DTR2G
The MC100EPT23 is a dual differential LVPECL/LVDS/CML to LVTTL/LVCMOS translator.
Environmental & Export Classifications of MC100EPT23DTR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
