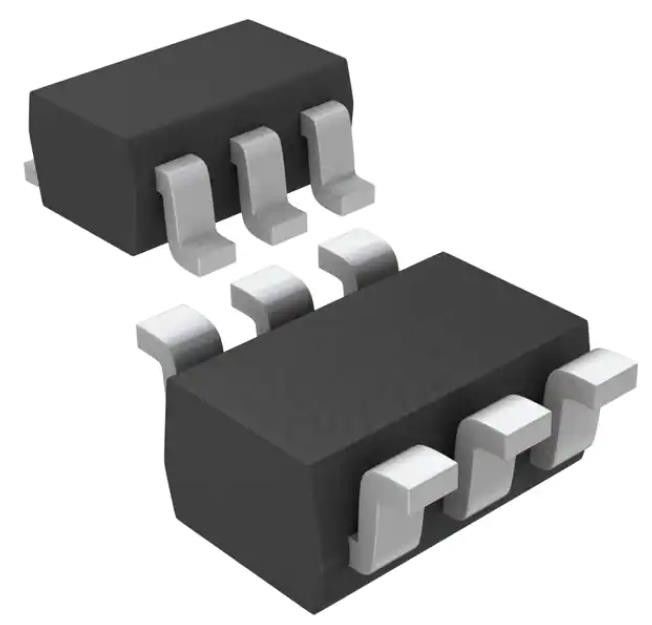

MAX9812LEXT+T Amplifier IC Integrated Circuit Chip 1-Channel Class AB SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX9812LEXT+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Microphone, Shutdown, Thermal Protection | Type: | Class AB |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | - |
| Voltage - Supply: | 2.7V ~ 3.6V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | SC-70-6 |
Product Description
MAX9812LEXT+T Amplifier IC Integrated Circuit Chip 1-Channel Class AB SC-70-6
Specifications of MAX9812LEXT+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | - |
| Voltage - Supply | 2.7V ~ 3.6V |
| Features | Microphone, Shutdown, Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | SC-70-6 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | MAX9812 |
Features of MAX9812LEXT+T
♦ PC2001 Compliant
♦ 100dB at 217Hz Power-Supply Rejection Ratio
♦ Very Low 230µA Quiescent Current
♦ Low 0.015% THD+N
♦ Available in Two Versions MAX9812L/MAX9813L—2.7V to 3.6V MAX9812H/MAX9813H—4.5V to 5.5V
♦ Internal Low-Noise Microphone Bias Supply 2.3V for MAX9812L/MAX9813L 4.0V for MAX9812H/MAX9813H
♦ 100nA Low-Power Shutdown Mode
♦ Rail-to-Rail Outputs
♦ 20dB Fixed Gain
♦ Available in Tiny 6-Pin SC70 (2mm x 2.1mm) and 8-Pin SOT23 (3mm x 3mm) Packages
♦ Extended Temperature Range -40°C to +85°C
Applications of MAX9812LEXT+T
* Notebook Computers
* PDAs
* Smart Phones
* Digital Cameras
* Video Tape Recorders
Environmental & Export Classifications of MAX9812LEXT+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
