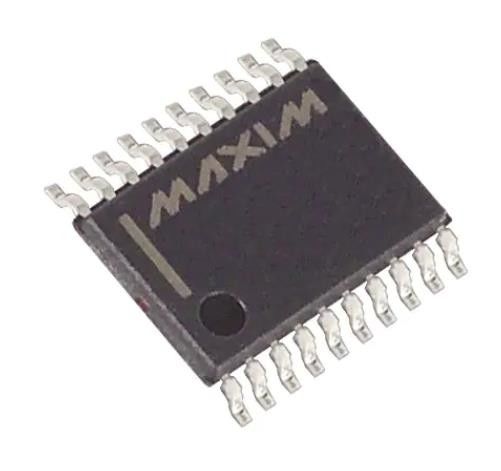

MAX3380EEUP+T 2/2 Integrated Circuit Chip Transceiver Full RS232 20-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | M95640-DRDW3TP/K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | RS232 |
|---|---|---|---|
| Number Of Drivers/Receivers: | 2/2 | Duplex: | Full |
| Receiver Hysteresis: | 300 MV | Data Rate: | 460Kbps |
| Voltage - Supply: | 2.4V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C |
Product Description
MAX3380EEUP+T 2/2 Integrated Circuit Chip Transceiver Full RS232 20-TSSOP
Specifications of MAX3380EEUP+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 460Kbps |
| Voltage - Supply | 2.4V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | MAX3380 |
Features of MAX3380EEUP+T
♦ ±15kV ESD Protection on All CMOS and RS-232 Inputs and Outputs (Except INVALID)
±15kV Human Body Model
±15kV IEC 1000-4-2 Air-Gap Discharge
±8kV IEC 1000-4-2 Contact Discharge
♦ Operates Over Entire Li+ Battery Range
♦ Low Logic Threshold Down to +1.65V for Compatibility with Cell Phone Logic Supply Voltages
♦ 1µA Low-Power AutoShutdown Plus Mode
♦ Compatible with Next-Generation GSM Data Rates
♦ 20-Pin TSSOP Package
Applications of MAX3380EEUP+T
* Cell Phone Data Lump Cables
* PDA Data Lump Cables
* GPS Receivers
* Digital Cameras
Environmental & Export Classifications of MAX3380EEUP+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
