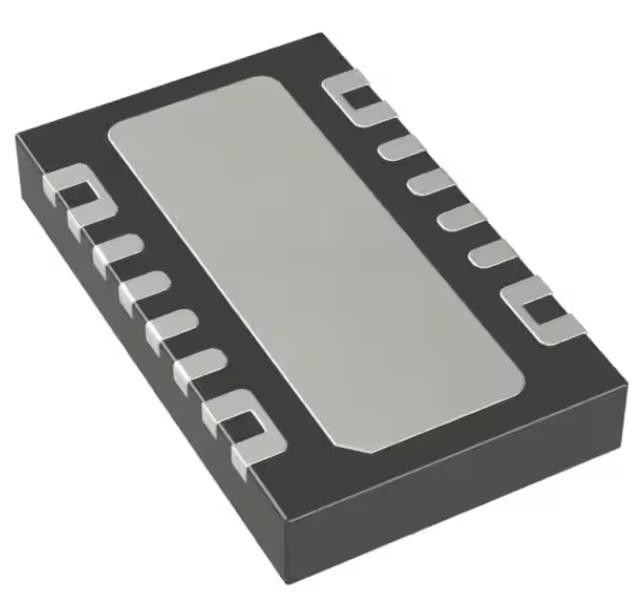

LTC4415EDHC#TRPBF OR Controller Source Selector Switch P-Channel 2:2 16-DFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC4415EDHC#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | PowerPath™ | Type: | Source Selector Switch |
|---|---|---|---|
| FET Type: | P-Channel | Internal Switch(s): | Yes |
| Current - Output (Max): | 4A | Current - Supply: | 44 µA |
| Voltage - Supply: | 1.7V ~ 5.5V | Applications: | Battery Backup, High Current Switch |
Product Description
LTC4415EDHC#TRPBF OR Controller Source Selector Switch P-Channel 2:2 16-DFN
Specifications of LTC4415EDHC#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Mfr | Analog Devices Inc. |
| Series | PowerPath™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Source Selector Switch |
| FET Type | P-Channel |
| Ratio - Input:Output | 2:02 |
| Internal Switch(s) | Yes |
| Current - Output (Max) | 4A |
| Current - Supply | 44 µA |
| Voltage - Supply | 1.7V ~ 5.5V |
| Applications | Battery Backup, High Current Switch |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) |
| Base Product Number | LTC4415 |
Features of LTC4415EDHC#TRPBF
* Dual 50mΩ Monolithic Ideal Diodes
* 1.7V to 5.5V Operating Range
* Up to 4A Adjustable Current Limit for Each Diode
* Low Reverse Leakage Current (1µA Max)
* 15mV Forward Drop in Regulation
* Smooth Switchover in Diode ORing
* Load Current Monitor
* Precision Enable Thresholds to Set Switchover
* Soft-Start to Limit Inrush Current on Start-Up
* Status Pins to Indicate Forward Diode Conduction
* Current and Thermal Limit with Warning
* Thermally Enhanced 16-Lead MSOP and DFN (3mm × 5mm) Packages
Applications of LTC4415EDHC#TRPBF
* High Current PowerPath™ Switch
* Battery and Wall Adapter Diode ORing
* Backup Battery Diode ORing
* Logic Controlled High Current Power Switch
* Supercapacitor ORing
* Multiple Battery Sharing
Environmental & Export Classifications of LTC4415EDHC#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
