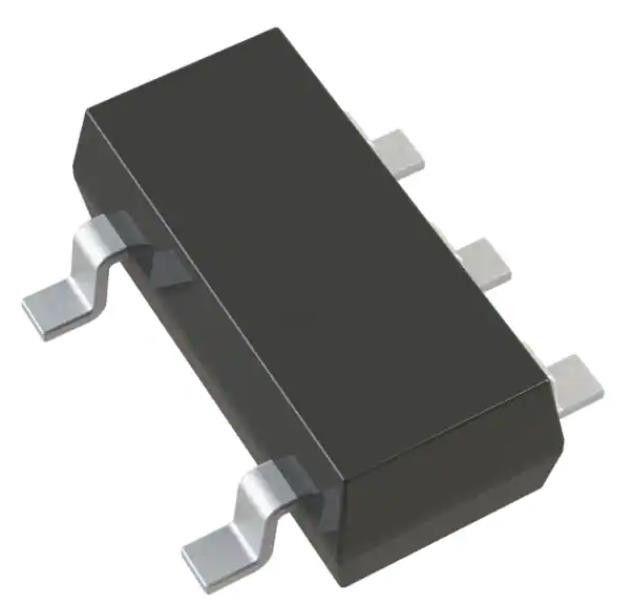

LTC4411ES5#TRPBF OR Controller Source Selector Switch P-Channel 1:1 TSOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC4411ES5#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Source Selector Switch | FET Type: | P-Channel |
|---|---|---|---|
| Ratio - Input:Output: | 1:01 | Internal Switch(s): | Yes |
| Current - Output (Max): | 2.6A | Current - Supply: | 40 µA |
| Voltage - Supply: | 2.6V ~ 5.5V | Applications: | Handheld/Mobile Devices |
Product Description
LTC4411ES5#TRPBF OR Controller Source Selector Switch P-Channel 1:1 TSOT-23-5
Specifications of LTC4411ES5#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Source Selector Switch |
| FET Type | P-Channel |
| Ratio - Input:Output | 1:01 |
| Internal Switch(s) | Yes |
| Current - Output (Max) | 2.6A |
| Current - Supply | 40 µA |
| Voltage - Supply | 2.6V ~ 5.5V |
| Applications | Handheld/Mobile Devices |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LTC4411 |
Features of LTC4411ES5#TRPBF
■ Low Loss Replacement for PowerPathTM OR’ing Diodes
■ Small Regulated Forward Voltage (28mV)
■ 2.6A Maximum Forward Current
■ Low Forward ON Resistance (140mΩ Max)
■ Low Reverse Leakage Current (<1µA)
■ 2.6V to 5.5V Operating Range
■ Internal Current Limit Protection
■ Internal Thermal Protection
■ No External Active Components
■ Pin-Compatible Monolithic Replacement for the LTC4412
■ Low Quiescent Current (40µA)
■ Low-Profile (1mm) 5-lead SOT-23 Package
Applications of LTC4411ES5#TRPBF
■ Cellular Phones
■ Handheld Computers
■ Digital Cameras
■ USB Peripherals
■ Uninterrupted Supplies
■ Logic Controlled Power Switch
Environmental & Export Classifications of LTC4411ES5#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
