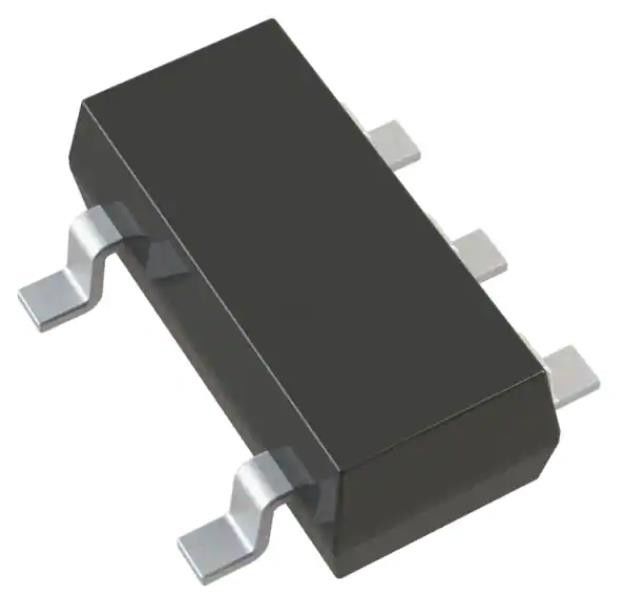

LT6107MPS5#TRMPBF Current Sense Amplifier 1 Circuit TSOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT6107MPS5#TRMPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | Current Sense | Number Of Circuits: | 1 |
|---|---|---|---|
| -3db Bandwidth: | 200 KHz | Current - Input Bias: | 40 NA |
| Voltage - Input Offset: | 150 µV | Current - Supply: | 70µA |
| Current - Output / Channel: | 1 MA | Voltage - Supply Span (Min): | 2.7 V |
| High Light: | LT6107MPS5#TRMPBF,Current Sense Amplifier IC,LT6107MPS5#TRMPBF Amplifier IC |
||
Product Description
LT6107MPS5#TRMPBF Current Sense Amplifier 1 Circuit TSOT-23-5
Specifications of LT6107MPS5#TRMPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | - |
| -3db Bandwidth | 200 kHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 150 µV |
| Current - Supply | 70µA |
| Current - Output / Channel | 1 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT6107 |
Features of LT6107MPS5#TRMPBF
* Fully Tested at –55°C (MP), –40°C (H), 25°C and 150°C
* Gain Configurable with Two Resistors
* Low Offset Voltage: 250µV Maximum
* Output Current: 1mA Maximum
* Supply Range: 2.7V to 36V, 44V Absolute Maximum
* Low Input Bias Current: 40nA Maximum
* PSRR: 106dB Minimum
* Low Supply Current: 65µA Typical, V+ = 12V
* Low Profile (1mm) ThinSOTTM Package
Applications of LT6107MPS5#TRMPBF
* Current Shunt Measurement
* Battery Monitoring
* Power Management
* Motor Control
* Lamp Monitoring
* Overcurrent and Fault Detection
Environmental & Export Classifications of LT6107MPS5#TRMPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
