LT1761ES5-5#TRPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1761ES5-5#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 20V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.45V @ 100mA | Current - Output: | 100mA |
| PSRR: | 65dB (120Hz) | 65dB (120Hz): | Enable |
| High Light: | LT1761ES5-5#TRPBF,LT1761ES5-5#TRPBF Voltage Regulator IC |
||
Product Description
LT1761ES5-5#TRPBF Linear Voltage Regulator IC Positive Fixed 1 Output 100mA
Specifications of LT1761ES5-5#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

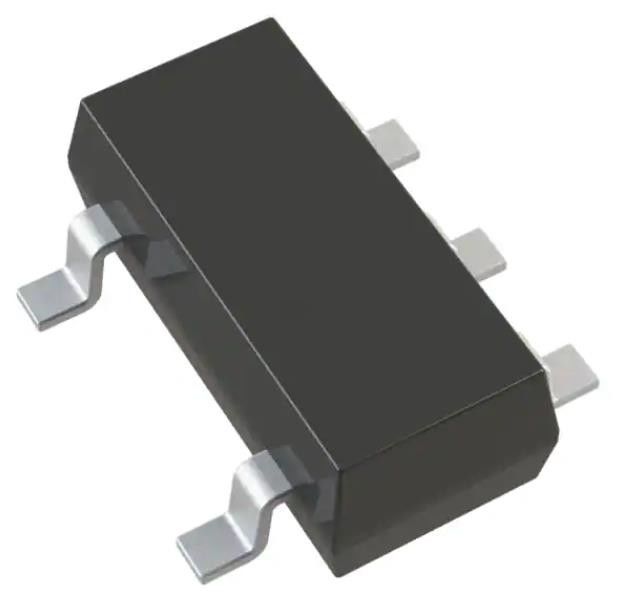

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT1761 |
Features of LT1761ES5-5#TRPBF
* Low Noise: 20μVRMS (10Hz to 100kHz)
* Low Quiescent Current: 20μA
* Wide Input Voltage Range: 1.8V to 20V
* Output Current: 100mA
* Very Low Shutdown Current: <0.1μA
* Low Dropout Voltage: 300mV at 100mA
* Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2V, 2.5V, 2.8V, 3V, 3.3V, 5V
* Adjustable Output from 1.22V to 20V
* Stable with 1μF Output Capacitor
* Stable with Aluminum, Tantalum or Ceramic Capacitors
* Reverse-Battery Protected
* No Reverse Current
* No Protection Diodes Needed
* Overcurrent and Overtemperature Protected
* Available in Tiny 5-Lead TSOT-23 Package
Applications of LT1761ES5-5#TRPBF
* Cellular Phones
* Pagers
* Battery-Powered Systems
* Frequency Synthesizers
* Wireless Modems
Environmental & Export Classifications of LT1761ES5-5#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
