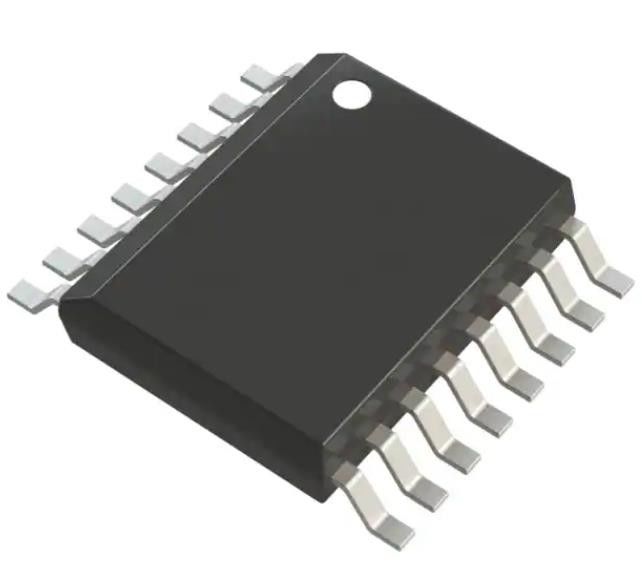

LT1568IGN # TRPBF Band Pass Filter IC Band Pass 2nd Order 200kHz 16-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1568IGN#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Filter Type: | Band Pass | Frequency - Cutoff Or Center: | 200kHz |
|---|---|---|---|
| Number Of Filters: | 2 | Filter Order: | 2nd |
| Voltage - Supply: | 2.7V ~ 11V, ±2.7V ~ 5.5V | Mounting Type: | Surface Mount |
| Package / Case: | 16-SSOP (0.154", 3.90mm Width) | Base Product Number: | LT1568 |
| High Light: | LT1568IGN # TRPBF,LT1568IGN # TRPBF Filter IC |
||
Product Description
LT1568IGN # TRPBF Band Pass Filter IC Band Pass 2nd Order 200kHz 16-SSOP
Specifications of LT1568IGN#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Filters - Active | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Filter Type | Band Pass |
| Frequency - Cutoff or Center | 200kHz |
| Number of Filters | 2 |
| Filter Order | 2nd |
| Voltage - Supply | 2.7V ~ 11V, ±2.7V ~ 5.5V |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | LT1568 |
Features of LT1568IGN#TRPBF
■ Up to 10MHz Center Frequency on a Single 3V Supply
■ Easy to Use—A Single Resistor Value Sets Lowpass Cutoff Frequency (200kHz ≤ ƒC ≤ 5MHz), Unequal Resistor Values Extend Cutoff Frequency Up to 10MHz
■ Extremely Flexible—Different Resistor Values Allow Lowpass Transfer Functions with or Without Gain (Butterworth, Chebyshev or Custom)
■ SNR = 92dB (ƒC = 2MHz, 2VP-P)
■ THD = –84dB (ƒC = 2MHz, 1VP-P)
■ Internal Capacitors Trimmed to ±0.75%
■ Single 4-Pole Lowpass Filter or Matched Pair of 2-Pole Lowpass Filters
■ Can be Connected as a Bandpass Filter
■ Single-Ended or Differential Output
■ Operates from Single 3V (2.7V Min) to ±5V Supply
■ Rail-to-Rail Input and Output Voltages
Applications of LT1568IGN#TRPBF
■ Replaces Discrete RC Active Filters and LC Filter Modules
■ Antialiasing/Reconstruction Filters
■ Dual or I-and-Q Channels (Two Matched 2nd Order Filters in One Package)
■ Single-Ended to Differential Conversion
■ Video Signal Processing
Environmental & Export Classifications of LT1568IGN#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
