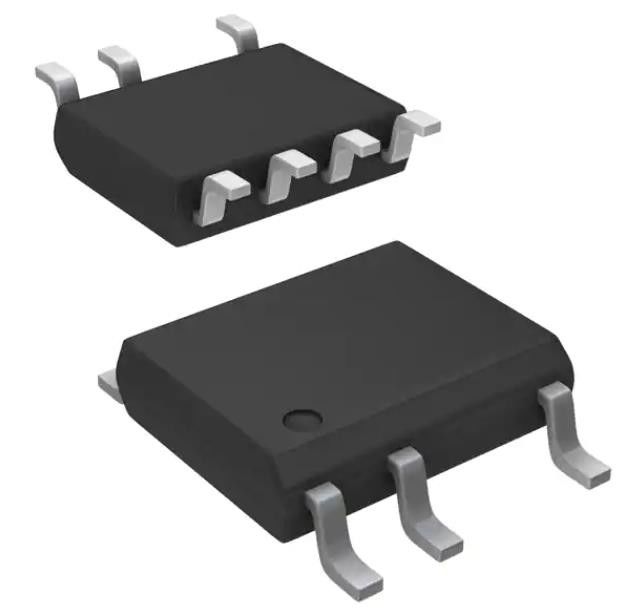

LNK564DN Integrated Circuit Chip Converter Offline Flyback Topology 100kHz SO-8C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LNK564DN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Isolation: | Isolated | Internal Switch(s): | Yes |
|---|---|---|---|
| Voltage - Breakdown: | 700V | Topology: | Flyback |
| Duty Cycle: | 70% | Frequency - Switching: | 100kHz |
| Power (Watts): | 3 W | Fault Protection: | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| High Light: | LNK564DN,LNK564DN Integrated Circuit Chip |
||
Product Description
LNK564DN Integrated Circuit Chip Converter Offline Flyback Topology 100kHz SO-8C
Specifications of LNK564DN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | LinkSwitch®-LP |
| Package | Tube |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 70% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 3 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Base Product Number | LNK564 |
Features of LNK564DN
• Lowest component count switcher
• Very tight parameter tolerances using proprietary IC trimming technology and transformer construction techniques enable Clampless™designs – decreases component count/system cost and increases efficiency
• Meets industry standard requirements for thermal overload protection – eliminates the thermal fuse used with linear transformers or additional components in RCC designs
• Frequency jittering greatly reduces EMI – enables low cost input filter configuration
• Meets HV creepage requirements between DRAIN and all other pins, both on the PCB and at the package
• Proprietary E-Shield™ transformer eliminates Y-capacitor
Applications of LNK564DN
• Chargers for cell/cordless phones, PDAs, power tools, MP3/portable audio devices, shavers etc.
• Standby and auxiliary supplies
Environmental & Export Classifications of LNK564DN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
