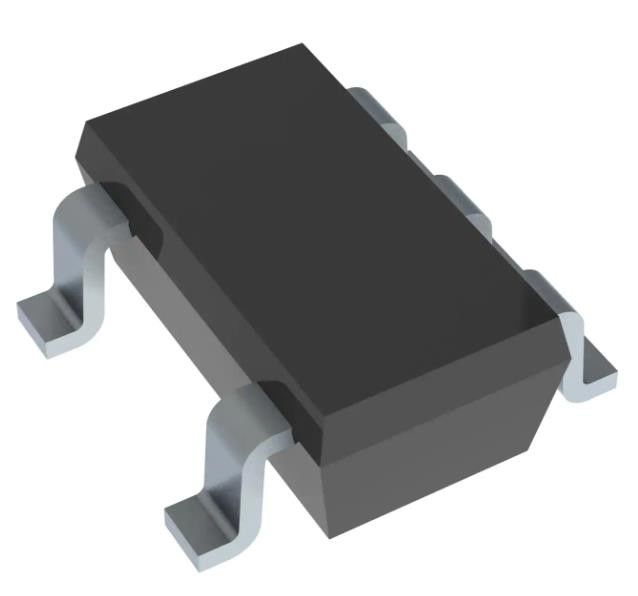

LMV931MFX/NOPB General Purpose Amplifier 1 Circuit Rail-To-Rail SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV931MFX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Slew Rate: | 0.42V/µs | Gain Bandwidth Product: | 1.5 MHz |
| Current - Input Bias: | 14 NA | Voltage - Input Offset: | 1 MV |
| Current - Supply: | 116µA | Current - Output / Channel: | 100 MA |
| High Light: | LMV931MFX/NOPB,SOT-23-5 General Purpose Amplifier IC |
||
Product Description
LMV931MFX/NOPB General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Specifications of LMV931MFX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.42V/µs |
| Gain Bandwidth Product | 1.5 MHz |
| Current - Input Bias | 14 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 116µA |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMV931 |
Features of LMV931MFX/NOPB
• Typical 1.8-V Supply Values; Unless Otherwise Noted
• Specified at 1.8 V, 2.7 V and 5 V
• Output Swing
– With 600-Ω Load 80 mV from Rail
– With 2-kΩ Load 30 mV from Rail
• VCM 200 mV Beyond Rails
• Supply Current (per Channel) 100 μA
• Gain Bandwidth Product 1.4 MHz
• Maximum VOS 4 mV
• Ultra Tiny Packages
• Temperature Range −40°C to +125°C
• Create a Custom Design Using the LMV93x-N With the WEBENCH® Power Designer
Applications of LMV931MFX/NOPB
• Phones
• Tablets
• Wearables
• Health Monitoring
• Portable and Battery-Powered Electronic Equipment
• Battery Monitoring
Environmental & Export Classifications of LMV931MFX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
