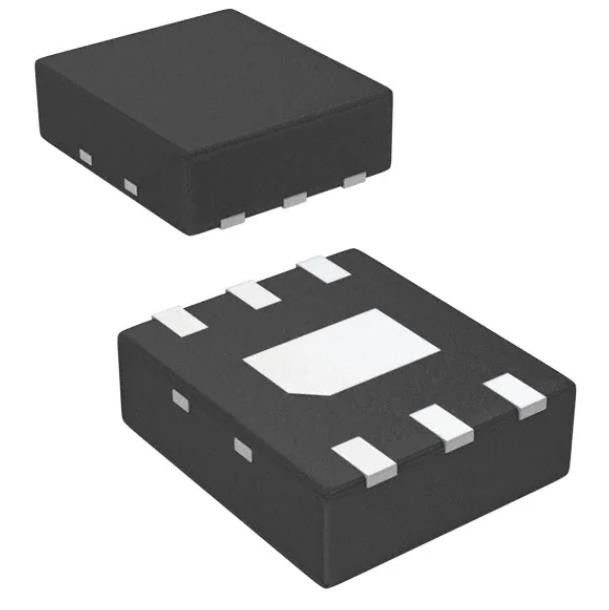

LMV221SD/NOPB RF Detector IC Cellular W-CDMA 50MHz ~ 3.5GHz -45dBm ~ 5dBm ±0.5dB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV221SD/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Frequency: | 50MHz ~ 3.5GHz | RF Type: | Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA |
|---|---|---|---|
| Input Range: | -45dBm ~ 5dBm | Accuracy: | ±0.5dB |
| Voltage - Supply: | 2.7V ~ 3.3V | Current - Supply: | 10 MA |
| Mounting Type: | Surface Mount | Package / Case: | 6-WDFN Exposed Pad |
| High Light: | LMV221SD/NOPB,LMV221SD/NOPB RF Detector IC |
||
Product Description
LMV221SD/NOPB RF Detector IC Cellular W-CDMA 50MHz ~ 3.5GHz -45dBm ~ 5dBm ±0.5dB
Specifications of LMV221SD/NOPB
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Frequency | 50MHz ~ 3.5GHz |
| RF Type | Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA |
| Input Range | -45dBm ~ 5dBm |
| Accuracy | ±0.5dB |
| Voltage - Supply | 2.7V ~ 3.3V |
| Current - Supply | 10 mA |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Base Product Number | LMV221 |
Features of LMV221SD/NOPB
• 2.7-V to 3.3-V Supply Voltage
• 40-dB Linear in dB Power Detection Range
• 0.3-V to 2-V Output Voltage Range
• Shutdown
• Multi-Band Operation from 50 MHz to 3.5 GHz
• 0.5-dB Accurate Temperature Compensation
• External Configurable Output Filter Bandwidth
• 2.5 mm × 2.2 mm × 0.8 mm 6-pin WSON Package
Applications of LMV221SD/NOPB
• UMTS/CDMA/WCDMA RF Power Control
• GSM/GPRS RF Power Control
• PA Modules
• IEEE 802.11b, g (WLAN)
Environmental & Export Classifications of LMV221SD/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
