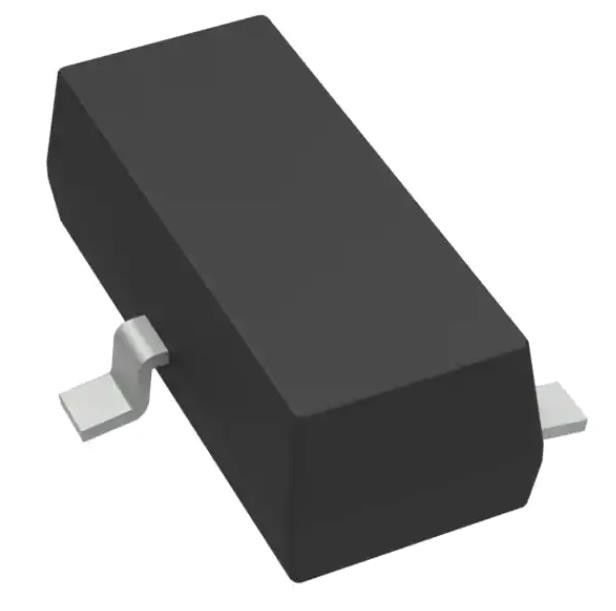

LM431BCM3X/NOPB Shunt Voltage Reference IC Adjustable 2.495V 37 VV ±1% 100 MA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM431BCM3X/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Voltage - Output (Min/Fixed): | 2.495V |
|---|---|---|---|
| Voltage - Output (Max): | 37 V | Current - Output: | 100 MA |
| Tolerance: | ±1% | Temperature Coefficient: | 50ppm/°C Typical |
| Current - Cathode: | 1 MA | Operating Temperature: | 0°C ~ 70°C (TA) |
| High Light: | LM431BCM3X/NOPB,Adjustable Shunt Voltage Reference IC |
||
Product Description
LM431BCM3X/NOPB Shunt Voltage Reference IC Adjustable 2.495V 37 VV ±1% 100 mA
Specifications of LM431BCM3X/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V |
| Voltage - Output (Max) | 37 V |
| Current - Output | 100 mA |
| Tolerance | ±1% |
| Temperature Coefficient | 50ppm/°C Typical |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 1 mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM431 |
Features of LM431BCM3X/NOPB
* Average Temperature Coefficient 50 ppm/°C
* Temperature Compensated for Operation Overthe Full Temperature Range
* Programmable Output Voltage
* Fast Turnon Response
* Low-Output Noise
* Low-Dynamic Output Impedance
* Available in Space-Saving SOlC-8, SOT-23, andTO-92 Packages
Applications of LM431BCM3X/NOPB
* Adjustable Voltage or Current Linear andSwitching Power Supplies
* Voltage Monitoring
* Current Source and Sink Circuits
* Circuits Requiring Precision References
* Zener Diode Replacements
Environmental & Export Classifications of LM431BCM3X/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
