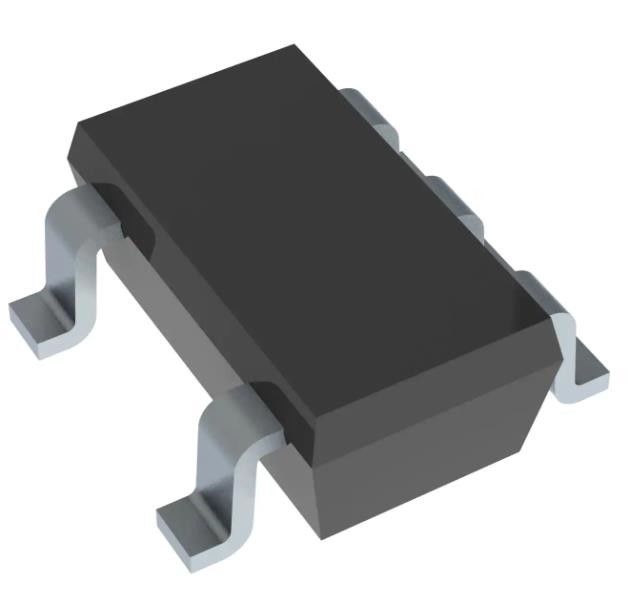

LM4132AMF-3.3/NOPB Series Voltage Reference IC Fixed 3.3V V ±0.05% 20 MA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM4132AMF-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Current - Output: | 20 MA |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Tolerance: | ±0.05% |
| Temperature Coefficient: | 20ppm/°C | Noise - 10Hz To 10kHz: | 310µVp-p |
| Voltage - Input: | 3.7V ~ 5.5V | Current - Supply: | 100µA |
| High Light: | LM4132AMF-3.3/NOPB,LM4132AMF-3.3/NOPB Voltage Reference IC |
||
Product Description
LM4132AMF-3.3/NOPB Series Voltage Reference IC Fixed 3.3V V ±0.05% 20 mA
Specifications of LM4132AMF-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 3.3V |
| Current - Output | 20 mA |
| Tolerance | ±0.05% |
| Temperature Coefficient | 20ppm/°C |
| Noise - 0.1Hz to 10Hz | 310µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 3.7V ~ 5.5V |
| Current - Supply | 100µA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LM4132 |
Features of LM4132AMF-3.3/NOPB
1• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40ºC to +125ºC Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
• Output Initial Voltage Accuracy: 0.05%
• Low Temperature Coefficient: 10 ppm/°C
• Low Supply Current: 60 µA
• Enable Pin Allowing a 3-µA Shutdown Mode
• 20-mA Output Current
• Voltage Options: 1.8 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V
• Custom Voltage Options Available (1.8 V to 4.096 V)
• VIN Range of VREF + 400 mV to 5.5 V at 10 mA
• Stable With Low-ESR Ceramic Capacitors
Applications of LM4132AMF-3.3/NOPB
• Instrumentation and Process Control
• Test Equipment
• Data Acquisition Systems
• Base Stations
• Servo Systems
• Portable, Battery-Powered Equipment
• Automotive and Industrial
• Precision Regulators
• Battery Chargers
• Communications
• Medical Equipment
Environmental & Export Classifications of LM4132AMF-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
