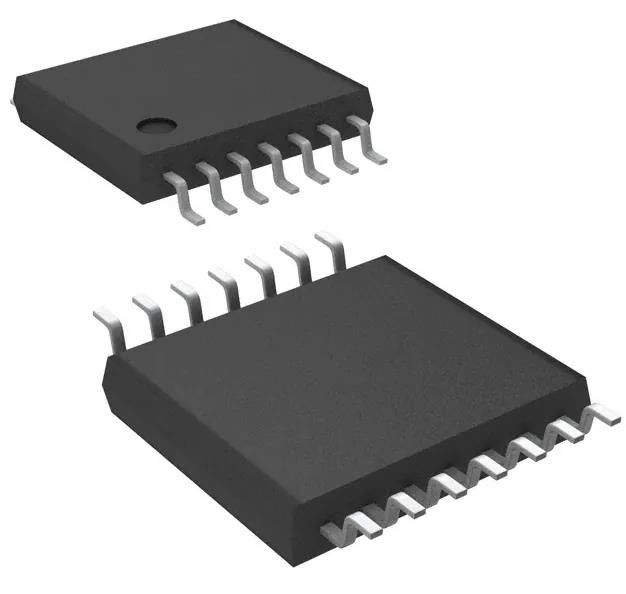

LM324APT Integrated Circuit Chip General Purpose Amplifier 4 Circuit 14-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM324APT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 4 | Slew Rate: | 0.4V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 1.3 MHz | Current - Input Bias: | 20 NA |
| Voltage - Input Offset: | 2 MV | Current - Supply: | 1.5mA |
| Current - Output / Channel: | 40 MA | Voltage - Supply Span (Min): | 3 V |
| High Light: | LM324APT,LM324APT Integrated Circuit Chip,14-TSSOP General Purpose Amplifier IC |
||
Product Description
LM324APT Integrated Circuit Chip General Purpose Amplifier 4 Circuit 14-TSSOP
Specifications of LM324APT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 0.4V/µs |
| Gain Bandwidth Product | 1.3 MHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1.5mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | LM324 |
Features of LM324APT
• Wide gain bandwidth: 1.3 MHz
• Input common mode voltage range includes ground
• Large voltage gain: 100 dB
• Very low supply current/amplifier: 375 µA
• Low input bias current: 20 nA
• Low input voltage: 3 mV max.
• Low input offset current: 2 nA
• Wide power supply range:
– Single supply: 3 V to 30 V
– Dual supplies: ±1.5 V to ±15 V
Applications of LM324APT
The LM124, LM224x and LM324x consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages.
Environmental & Export Classifications of LM324APT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
