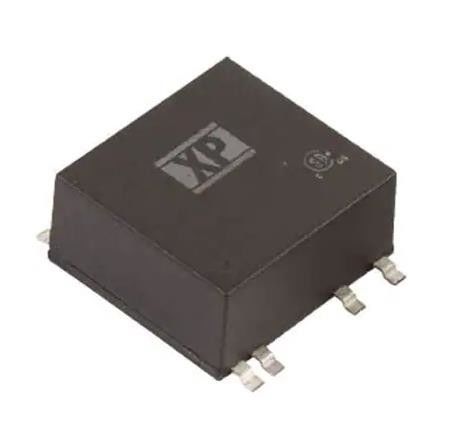

ISX0648S15 Isolated Module DC DC Converter IC 1 Output 15V 400mA 18V - 75V Input
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISX0648S15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Isolated Module | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 18V | Voltage - Input (Max): | 75V |
| Voltage - Output 1: | 15V | Current - Output (Max): | 400mA |
| Power (Watts): | 6 W | Voltage - Isolation: | 1.5 KV |
| High Light: | ISX0648S15,Isolated Module DC DC Converter IC |
||
Product Description
ISX0648S15 Isolated Module DC DC Converter 1 Output 15V 400mA 18V - 75V Input
Specifications of ISX0648S15
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | XP Power |
| Series | ISX06 (6W) |
| Package | Bulk |
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 83% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.80" W x 0.40" H (22.0mm x 20.3mm x 10.1mm) |
| Control Features | Enable, Active High |
| Standard Number | 62368-1 |
| Base Product Number | ISX0648 |
Features of ISX0648S15
• Regulated Single & Dual Output
• Wide 4:1 Input Range
• Compact SMD Package
• 1500 VDC Isolation
• Operating Temperature -40 °C to +100 °C
• Remote On/Off
• Tape & Reel Package Available
• Optional Water Washable Versions
• 3 Year Warranty
Environmental & Export Classifications of ISX0648S15
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
