HAT1072H-EL-E P-Channel MOSFET 30 V 40A (Ta) 30W (Tc) Surface Mount LFPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HAT1072H-EL-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | Drum Core, Wirewound | Material - Core: | Ferrite |
|---|---|---|---|
| Inductance: | 6.8 µH | Tolerance: | ±20% |
| Current Rating (Amps): | 0.083333333 | Shielding: | Unshielded |
| DC Resistance (DCR): | 103.6mOhm Max | Frequency - Self Resonant: | 25MHz |
| High Light: | HAT1072H-EL-E,HAT1072H-EL-E P-Channel MOSFET |
||
Product Description

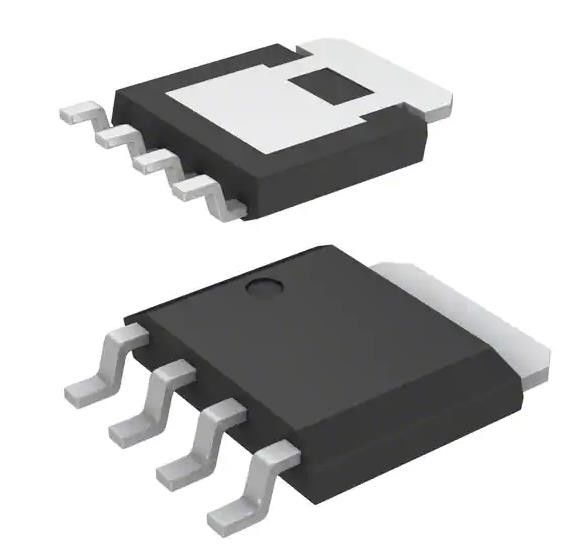

HAT1072H-EL-E P-Channel 30 V 40A (Ta) 30W (Tc) Surface Mount LFPAK
Specifications of HAT1072H-EL-E
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 155 nC @ 10 V |
| Vgs (Max) | +10V, -20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9500 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK |
| Package / Case | SC-100, SOT-669 |
| Base Product Number | HAT1072 |
Features of HAT1072H-EL-E
• Capable of –4.5 V gate drive
• Low drive current
• High density mounting
• Low on-resistance RDS (on) = 3.6 mΩ typ (at VGS = –10 V)
Environmental & Export Classifications of HAT1072H-EL-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
