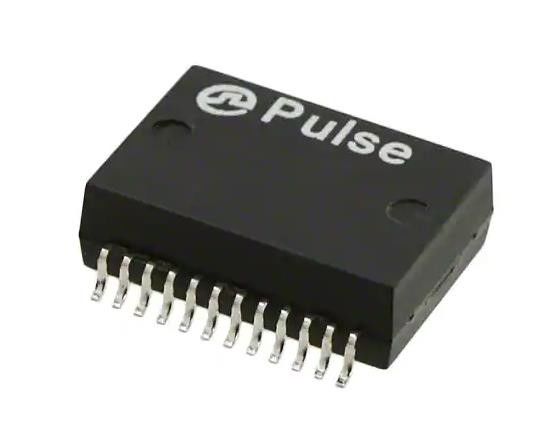

H5007NLT Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | H5007NLT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transformer Type: | Isolation And Data Interface (Encapsulated) | Turns Ratio - Primary:Secondary: | 1CT:1CT |
|---|---|---|---|
| Mounting Type: | Surface Mount | Size / Dimension: | 0.690" L X 0.480" W (17.53mm X 12.20mm) |
| Height - Seated (Max): | 0.227" (5.76mm) | Operating Temperature: | 0°C ~ 70°C |
| Weight: | 0.06 Oz (1.71 G) | ET (Volt-Time): | - |
Product Description
H5007NLT Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT
Specifications of H5007NLT
| TYPE | DESCRIPTION |
| Category | Transformers |
| Pulse Transformers | |
| Mfr | Pulse Electronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Inductance | - |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.690" L x 0.480" W (17.53mm x 12.20mm) |
| Height - Seated (Max) | 0.227" (5.76mm) |
| Operating Temperature | 0°C ~ 70°C |
| Weight | 0.06 oz (1.71 g) |
Features of H5007NLT
* RoHS peak reflow temperature rating 245°C
* Meets IEEE 802.3 specification
Applications of H5007NLT
• Cellular
• PCS
• Communication receivers & transmitters
Environmental & Export Classifications of H5007NLT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
