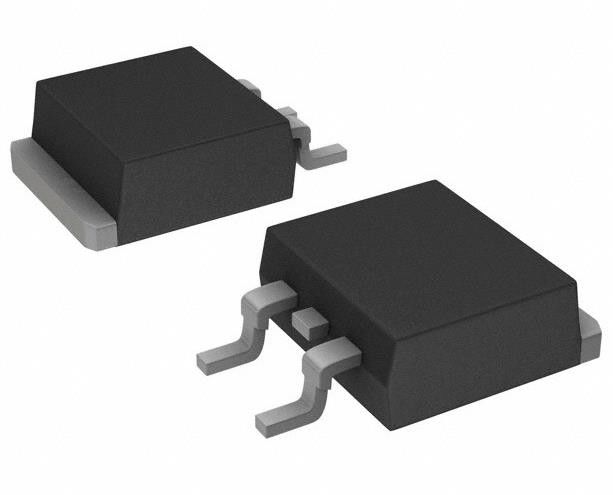

FDB8444-F085 N-Channel 40 V 70A (Tc) 167W (Tc) Surface Mount D²PAK (TO-263)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDB8444-F085 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 40 V | Current - Continuous Drain (Id) @ 25°C: | 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 5.5mOhm @ 70A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 128 NC @ 10 V |
Product Description
FDB8444-F085 N-Channel 40 V 70A (Tc) 167W (Tc) Surface Mount D²PAK (TO-263)
Specifications of FDB8444-F085
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101, PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 70A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 128 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8035 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Base Product Number | FDB844 |
Features of FDB8444-F085
*Typ rDS(on) = 3.9mΩ at VGS = 10V, ID = 70A
*Typ Qg(TOT) = 91nC at VGS = 10V
*Low Miller Charge
*Low Qrr Body Diode
*UIS Capability (Single Pulse and Repetitive Pulse)
*Qualified to AEC Q101
*RoHS Complian
Applications of FDB8444-F085
* Automotive Engine Control
* Powertrain Management
* Solenoid and Motor Drivers
* Electronic Transmission
* Distributed Power Architecture and VRMs
* Primary Switch for 12V Systems
Environmental & Export Classifications of FDB8444-F085
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
