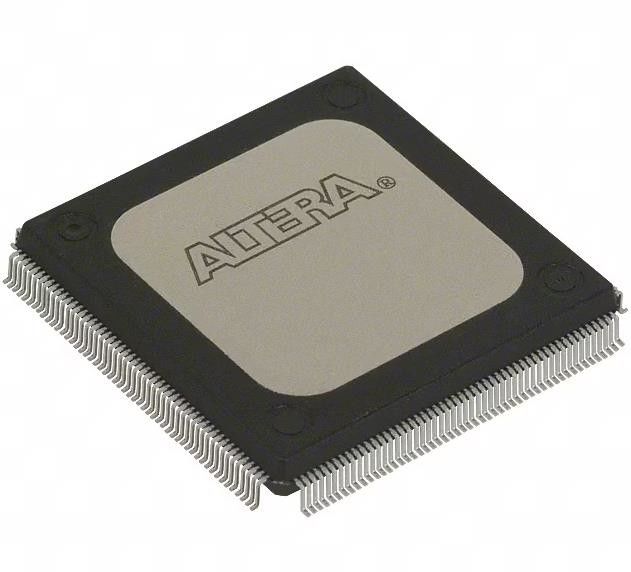

EPF10K20RI208-4N FLEX-10K Field Programmable Gate Array (FPGA) IC 147 12288 1152
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EPF10K20RI208-4N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of LABs/CLBs: | 144 | Number Of Logic Elements/Cells: | 1152 |
|---|---|---|---|
| Total RAM Bits: | 12288 | Number Of I/O: | 147 |
| Number Of Gates: | 63000 | Voltage - Supply: | 4.5V ~ 5.5V |
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
EPF10K20RI208-4N FLEX-10K Field Programmable Gate Array (FPGA) IC 147 12288 1152
Specifications of EPF10K20RI208-4N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Intel |
| Series | FLEX-10K® |
| Package | Tray |
| Product Status | Obsolete |
| Number of LABs/CLBs | 144 |
| Number of Logic Elements/Cells | 1152 |
| Total RAM Bits | 12288 |
| Number of I/O | 147 |
| Number of Gates | 63000 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 208-BFQFP Exposed Pad |
| Supplier Device Package | 208-RQFP (28x28) |
| Base Product Number | EPF10K20 |
Features of EPF10K20RI208-4N
■ The industry’s first embedded programmable logic device (PLD) family, providing System-on-a-Programmable-Chip (SOPC) integration
– Embedded array for implementing megafunctions, such as efficient memory and specialized logic functions
– Logic array for general logic functions
■ High density
– 10,000 to 250,000 typical gates (see Tables 1 and 2)
– Up to 40,960 RAM bits; 2,048 bits per embedded array block (EAB), all of which can be used without reducing logic capacity
■ System-level features
– MultiVoltTM I/O interface support
– 5.0-V tolerant input pins in FLEX® 10KA devices
– Low power consumption (typical specification less than 0.5 mA in standby mode for most devices)
– FLEX 10K and FLEX 10KA devices support peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2
– FLEX 10KA devices include pull-up clamping diode, selectable on a pin-by-pin basis for 3.3-V PCI compliance
– Select FLEX 10KA devices support 5.0-V PCI buses with eight or fewer loads
– Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990, available without consuming any device logic
Applications of EPF10K20RI208-4N
Altera’s FLEX 10K devices are the industry’s first embedded PLDs. Based on reconfigurable CMOS SRAM elements, the Flexible Logic Element MatriX (FLEX) architecture incorporates all features necessary to implement common gate array megafunctions.
Environmental & Export Classifications of EPF10K20RI208-4N
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
