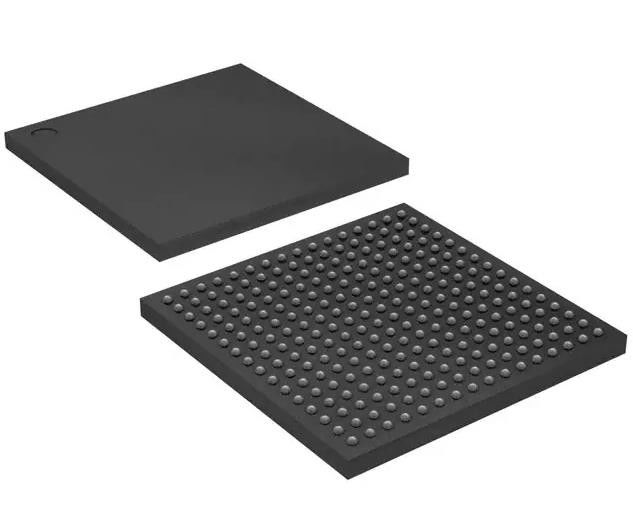

EP2C20F256I8N Cyclone® II Field Programmable Gate Array (FPGA) IC 152 239616 18752
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EP2C20F256I8N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of LABs/CLBs: | 1172 | Number Of Logic Elements/Cells: | 18752 |
|---|---|---|---|
| Total RAM Bits: | 239616 | Number Of I/O: | 152 |
| Voltage - Supply: | 1.15V ~ 1.25V | Mounting Type: | Mounting Type |
| Operating Temperature: | -40°C ~ 100°C (TJ) | Package / Case: | 256-LBGA |
Product Description
EP2C20F256I8N Cyclone® II Field Programmable Gate Array (FPGA) IC 152 239616 18752
Specifications of EP2C20F256I8N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Intel |
| Series | Cyclone® II |
| Package | Tray |
| Product Status | Active |
| Number of LABs/CLBs | 1172 |
| Number of Logic Elements/Cells | 18752 |
| Total RAM Bits | 239616 |
| Number of I/O | 152 |
| Voltage - Supply | 1.15V ~ 1.25V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FBGA (17x17) |
| Base Product Number | EP2C20 |
Features of EP2C20F256I8N
■ High-density architecture with 4,608 to 68,416 LEs
● M4K embedded memory blocks
● Up to 1.1 Mbits of RAM available without reducing available logic
● 4,096 memory bits per block (4,608 bits per block including 512 parity bits)
● Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36
● True dual-port (one read and one write, two reads, or two writes) operation for ×1, ×2, ×4, ×8, ×9, ×16, and ×18 modes
● Byte enables for data input masking during writes
● Up to 260-MHz operation
Applications of EP2C20F256I8N
Cyclone® II devices contain a two-dimensional row- and column-based architecture to implement custom logic.
Environmental & Export Classifications of EP2C20F256I8N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
