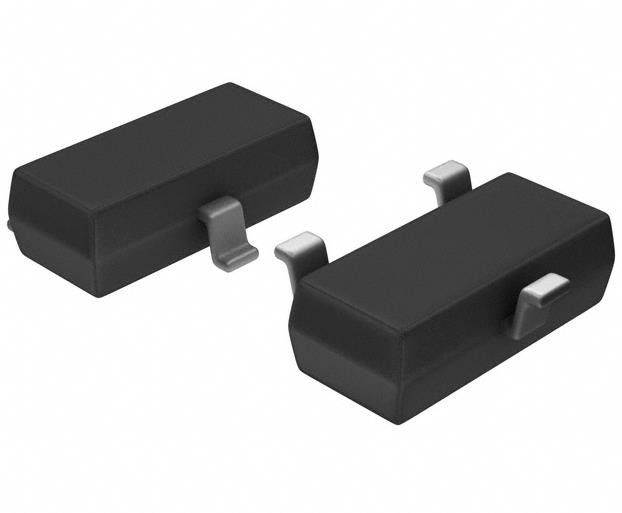

DTC114YKA-T146 Pre-Biased Bipolar Transistor 50 V 100 mA 250 MHz 200 mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DTC114YKA-T146 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | NPN - Pre-Biased | Current - Collector (Ic) (Max): | 100 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50 V | Resistor - Base (R1): | 10 KOhms |
| Resistor - Emitter Base (R2): | 47 KOhms | DC Current Gain (hFE) (Min) @ Ic, Vce: | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 250µA, 5mA | Current - Collector Cutoff (Max): | 500nA |
Product Description
DTC114YKA-T146 Pre-Biased Bipolar Transistor 50 V 100 mA 250 MHz 200 mW
Specifications of DTC114YKA-T146
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250 MHz |
| Power - Max | 200 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SMT3 |
| Base Product Number | DTC114 |
Features of DTC114YKA-T146
1) Built-In Biasing Resistors, R1 = 10kΩ, R2 = 47kΩ
2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) .
3) Only the on/off conditions need to be set for operation, making the circuit design easy.
4) Complementary PNP Types: DTA114Y series
Applications of DTC114YKA-T146
INVERTER, INTERFACE, DRIVER
