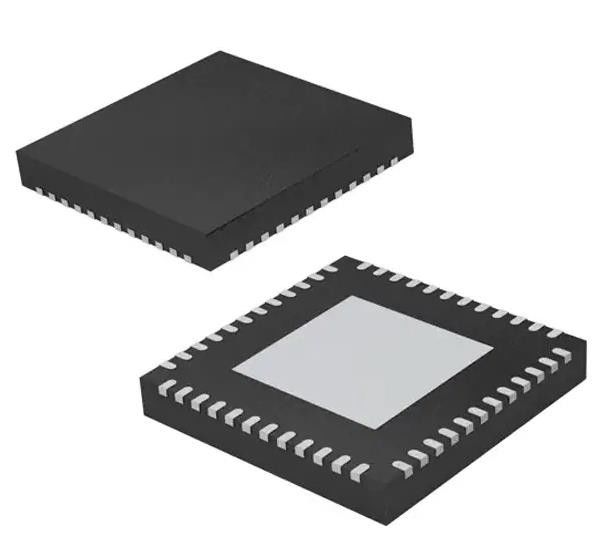

DS90UB914QSQX/NOPB 1.4Gbps Deserializer 1 Input 12 Output 48-WQFN (7x7)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90UB914QSQX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Deserializer | Data Rate: | 1.4Gbps |
|---|---|---|---|
| Input Type: | FPD-Link III, LVDS | Output Type: | LVCMOS |
| Number Of Inputs: | 1 | Number Of Outputs: | 12 |
| Voltage - Supply: | 1.71V ~ 1.89V, 3V ~ 3.6V | Operating Temperature: | -40°C ~ 105°C (TA) |
Product Description
DS90UB914QSQX/NOPB 1.4Gbps Deserializer 1 Input 12 Output 48-WQFN (7x7)
Specifications of DS90UB914QSQX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Serializers, Deserializers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Deserializer |
| Data Rate | 1.4Gbps |
| Input Type | FPD-Link III, LVDS |
| Output Type | LVCMOS |
| Number of Inputs | 1 |
| Number of Outputs | 12 |
| Voltage - Supply | 1.71V ~ 1.89V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-WQFN (7x7) |
| Base Product Number | DS90UB914 |
Features of DS90UB914QSQX/NOPB
* 10-MHz to 100-MHz Input Pixel Clock Support
* Single Differential Pair Interconnect
* Programmable Data Payload:
- 10-bit Payload up to 100 MHz
- 12-bit Payload up to 75 MHz
* Continuous Low Latency Bidirectional ControlInterface Channel With 12C Support at 400 kHz
* 2:1 Multiplexer to Choose Between Two Inputmagers
* Embedded Clock With DC-Balanced Coding toSupport AC-Coupled Interconnects
* Capable of Driving up to 25 Meters ShieldedTwisted-Pair
* Receive Equalizer Automatically Adapts forChanges in Cable Loss
* Four Dedicated General-Purpose Input/OutputPins (GPIO) Available on Both Serializer andDeserializer
* LOCK Output Reporting Pin and AT-SPEED BISTDiagnosis Feature to Validate Link Integrity
* 1.8-V.2.8-V or 3.3-V Compatible Parallel Inputson Serializer
* Single Power Supply at 1.8 V
* ISO 10605 and IEC 61000-4-2 ESD Compliant
* Automotive-Grade Product: AEC-Q100 Grade 2Qualified
* Temperature Range -40°C to +105°C
* Small Serializer Footprint (5 mm x 5 mm)
* EMI/EMC Mitigation on Deserializer
- Programmable Spread Spectrum (SSCG)Outputs
- Receiver Staggered Outputs
Applications of DS90UB914QSQX/NOPB
* Front- or Rear-View Camera for CollisionMitigation
* Surround View for Parking Assistance
Environmental & Export Classifications of DS90UB914QSQX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
