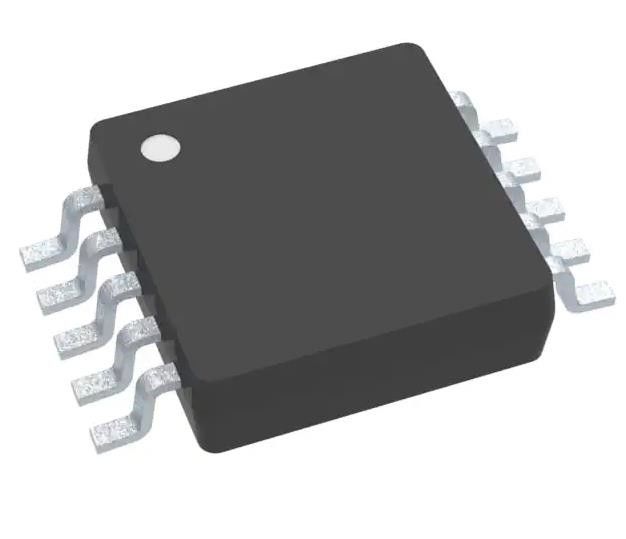

DRV2605LDGSR Motor Driver Integrated Circuit Chip Power MOSFET I²C 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV2605LDGSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Motor Type - AC, DC: | ERM, LRA | Function: | Driver - Fully Integrated, Control And Power Stage |
|---|---|---|---|
| Output Configuration: | Half Bridge (2) | Interface: | I²C |
| Technology: | Power MOSFET | Applications: | Haptic Feedback |
| Voltage - Supply: | 2V ~ 5.5V | Operating Temperature: | -40°C ~ 150°C (TJ) |
Product Description
DRV2605LDGSR Motor Driver Integrated Circuit Chip Power MOSFET I²C 10-VSSOP
Specifications of DRV2605LDGSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | ERM, LRA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | I²C |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Haptic Feedback |
| Current - Output | - |
| Voltage - Supply | 2V ~ 5.5V |
| Voltage - Load | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | DRV2605 |
Features of DRV2605LDGSR
• Flexible Haptic and Vibration Driver
– LRA (Linear Resonance Actuator)
– ERM (Eccentric Rotating Mass)
• I2C-Controlled Digital Playback Engine
– Waveform Sequencer and Trigger
– Real-Time Playback Mode through I2C
– I2C Dual-Mode Drive (Open and Closed Loop)
• Smart-Loop Architecture (Patent Pending Control Algorithm)
– Automatic Overdrive and Braking
– Automatic Resonance Tracking and Reporting (LRA Only)
– Automatic Actuator Diagnostic
– Automatic Level Calibration
– Wide Support for Actuator Models
• Licensed Immersion TouchSense® 2200 Features:
– Integrated Immersion Effect Library
– Audio-to-Vibe
• Drive Compensation Over Battery Discharge
• Wide Voltage Operation (2 V to 5.2 V)
• Efficient Differential Switching Output Drive
• PWM Input with 0% to 100% Duty-Cycle Control Range
• Hardware Trigger Input
• Fast Startup Time
• 1.8-V Compatible, VDD-Tolerant Digital Interface
Applications of DRV2605LDGSR
• Mobile Phones and Tablets
• Watches and Wearable Technology
• Remote Controls, Mice, and Peripheral Devices
• Touch-Enabled Devices
• Industrial Human-Machine Interfaces
• Electronic Point of Sale (ePOS)
Environmental & Export Classifications of DRV2605LDGSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
