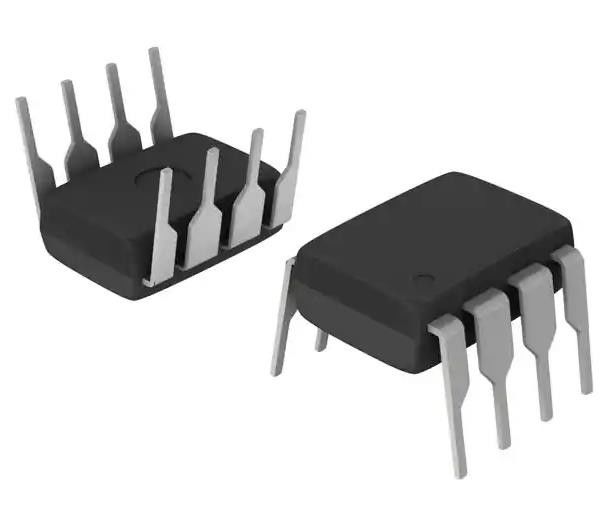

DPA424PN DPA-Switch® ConverteTelecom Applications Voltage Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DPA424PN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | DPA-Switch® | Package: | Tube |
|---|---|---|---|
| Applications: | Converter, Power Over Ethernet And Telecom Applications | Voltage - Input: | 16V ~ 75V |
| Number Of Outputs: | 1 | Voltage - Output: | 220V |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Through Hole |
Product Description
DPA424PN DPA-Switch® ConverteTelecom Applications Voltage Regulator IC
Specifications of DPA424PN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Power Integrations |
| Series | DPA-Switch® |
| Package | Tube |
| Applications | Converter, Power Over Ethernet and Telecom Applications |
| Voltage - Input | 16V ~ 75V |
| Number of Outputs | 1 |
| Voltage - Output | 220V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | DPA424 |
Features of DPA424PN
• Eliminates up to 50 external components–saves space, cost
• Integrates 220 V high frequency MOSFET, PWM control
• Lower cost plastic DIP surface mount (G package) and through-hole (P package) options for designs ≤35 W
• Thermally efficient TO-263-7C (R package) option for high power applications
Applications of DPA424PN
• PoE applications, VoIP phones, WLAN, security cameras
• Telco central office equipment: xDSL, ISDN, PABX
• Distributed power architectures (24 V/48 V bus)
• Industrial controls
Environmental & Export Classifications of DPA424PN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
