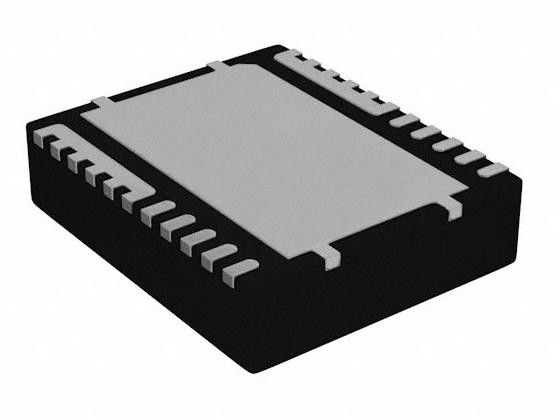

CSD95373AQ5M Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-LSON-CLIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD95373AQ5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Configuration: | Half Bridge | Applications: | Synchronous Buck Converters |
|---|---|---|---|
| Interface: | PWM | PWM: | Inductive |
| Technology: | Power MOSFET | Current - Output / Channel: | 45A |
| Current - Peak Output: | 67A | Voltage - Load: | 4.5V ~ 16V |
Product Description
CSD95373AQ5M Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-LSON-CLIP
Specifications of CSD95373AQ5M
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge Drivers | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 45A |
| Current - Peak Output | 67A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerLFDFN |
| Supplier Device Package | 12-LSON-CLIP (5x6) |
| Base Product Number | CSD95373 |
Features of CSD95373AQ5M
* 45 A Continuous Operating Current Capability
* 92.6% System Efficiency at 25 A
* Ultra-Low Power Loss of 2.6 W at 25 A
* High Frequency Operation (up to 2 MHz)
* High Density - SON 5 x 6-mm Footprint
* Ultra-Low Inductance Package
* System Optimized PCB Footprint
* 3.3 V and 5 V PWM Signal Compatible
* Diode Emulation Mode with FCCM
* Analog Temperature Output
* Tri-State PWM Input
* Integrated Bootstrap Switch
* Optimized Dead Time for Shoot ThroughProtection
* RoHS Compliant - Lead-Free Terminal Plating
* Halogen Free
Applications of CSD95373AQ5M
* Multiphase Synchronous Buck Converter
- High Frequency Applications
- High-Current, Low Duty Cycle Applications
* Point of Load Dc-Dc Converters
* Memory and Graphic Cards
* Desktop and Server VR11.x and VR12.x forVCore Synchronous Buck Converters
Environmental & Export Classifications of CSD95373AQ5M
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
