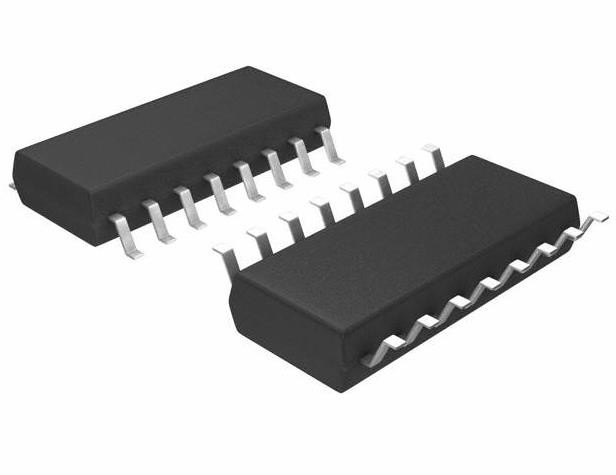

CD74HC123NSR Monostable Multivibrator 25 ns 16-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD74HC123NSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 6 | Number Of Inputs: | 1 |
|---|---|---|---|
| Voltage - Supply: | 3V ~ 18V | Current - Quiescent (Max): | 4µA |
| Current - Output High, Low: | 4.3mA, 24mA | Input Logic Level - Low: | 1V ~ 2.5V |
| Input Logic Level - High: | 4V ~ 12.5V | Max Propagation Delay @ V, Max CL: | 50ns @ 15V, 50pF |
Product Description
CD74HC123NSR Monostable Multivibrator 25 ns 16-SO
Specifications of CD74HC123NSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Multivibrators | |
| Mfr | Texas Instruments |
| Series | 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Monostable |
| Independent Circuits | 2 |
| Schmitt Trigger Input | No |
| Propagation Delay | 25 ns |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | 74HC123 |
Features of CD74HC123NSR
• Overriding Reset Terminates Output Pulse
• Triggering From the Leading or Trailing Edge
• Q and Q Buffered Outputs
• Separate Resets
• Wide Range of Output-Pulse Widths
• Schmitt Trigger on Both A and B Inputs
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30%of VCC at VCC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH
Applications of CD74HC123NSR
The ’HC123, ’HCT123, CD74HC423 and CD74HCT423 are dual monostable multivibrators with resets.
Environmental & Export Classifications of CD74HC123NSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
