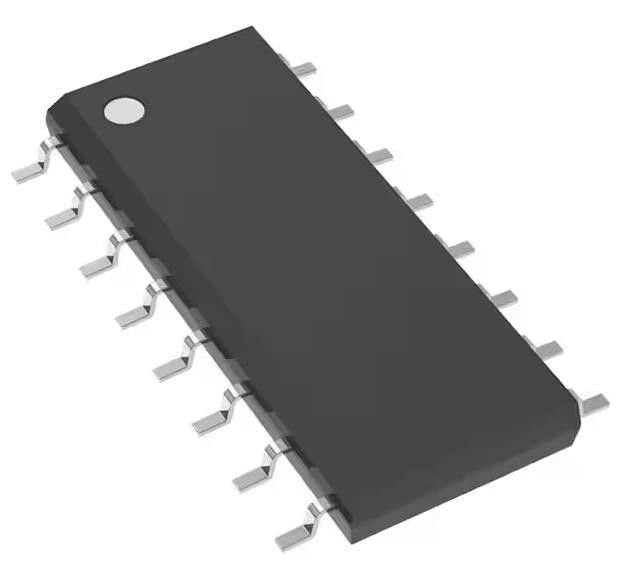

CD4049UBDR Integrated Circuit Chip Inverter IC 6 Channel 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD4049UBDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 6 | Number Of Inputs: | 1 |
|---|---|---|---|
| Voltage - Supply: | 3V ~ 18V | Current - Quiescent (Max): | 4µA |
| Current - Output High, Low: | 4.3mA, 24mA | Input Logic Level - Low: | 1V ~ 2.5V |
| Input Logic Level - High: | 4V ~ 12.5V | Max Propagation Delay @ V, Max CL: | 50ns @ 15V, 50pF |
Product Description
CD4049UBDR Integrated Circuit Chip Inverter IC 6 Channel 16-SOIC
Specifications of CD4049UBDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 4.3mA, 24mA |
| Input Logic Level - Low | 1V ~ 2.5V |
| Input Logic Level - High | 4V ~ 12.5V |
| Max Propagation Delay @ V, Max CL | 50ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Base Product Number | CD4049 |
Features of CD4049UBDR
• CD4049UB Inverting
• CD4050B Noninverting
• High Sink Current for Driving 2 TTL Loads
• High-to-Low Level Logic Conversion
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 µA at 18 V Over Full Package Temperature Range; 100 nA at 18 V and 25°C
• 5-V, 10-V, and 15-V Parametric Ratings
Applications of CD4049UBDR
• CMOS to DTL or TTL Hex Converters
• CMOS Current Sink or Source Drivers
• CMOS High-to-Low Logic Level Converters
