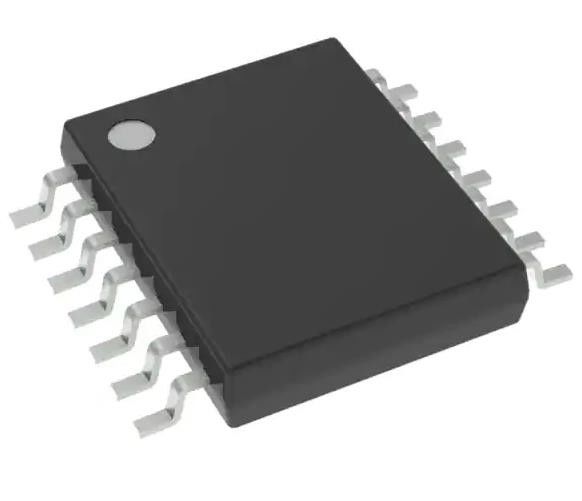

CD4011BPWR NAND Gate Integrated Circuit Chip IC 4 Channel 14-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD4011BPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 4 | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 3V ~ 18V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 3.4mA, 3.4mA | Input Logic Level - Low: | 1.5V ~ 4V |
| Input Logic Level - High: | 3.5V ~ 11V | Max Propagation Delay @ V, Max CL: | 90ns @ 15V, 50pF |
Product Description
CD4011BPWR NAND Gate Integrated Circuit Chip IC 4 Channel 14-TSSOP
Specifications of CD4011BPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | CD4011 |
Features of CD4011BPWR
*Propagation delay time = 60 ns (typ.) atCL= 50 pF,VDD=10 V
*Buffered inputs and outputt
*Standardized symmetrical output characteristics
*Maximum input current of 1 pA at 18 Vover full package temperature range;100 nA at 18 V and 250C
*100% tested for quiescent current at 20 V
*5-V, 10-V, and 15-V parametric ratings
Applications of CD4011BPWR
CD4011B,CD40128,and CD40238NAND gates provide the system designerwith direct implerentation of the NANDfunction and supplement the existing familyof CMOS gates. All inputs and outputs arebuffered.
Environmental & Export Classifications of CD4011BPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
