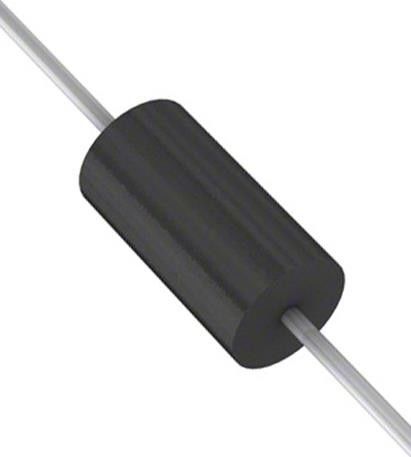

BZW06-5V8BRL 13.4V Clamp 298A (8/20µs) Ipp Tvs Diode Through Hole DO-15 (DO-204AC)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BZW06-5V8BRL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Bidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 5.8V | Voltage - Breakdown (Min): | 6.45V |
| Voltage - Clamping (Max) @ Ipp: | 13.4V | Current - Peak Pulse (10/1000µs): | 298A (8/20µs) |
| Power - Peak Pulse: | 600W | Power Line Protection: | No |
Product Description
BZW06-5V8BRL 13.4V Clamp 298A (8/20µs) Ipp Tvs Diode Through Hole DO-15 (DO-204AC)
Specifications of BZW06-5V8BRL
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | STMicroelectronics |
| Series | BZW06, TRANSIL™ |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5.8V |
| Voltage - Breakdown (Min) | 6.45V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Current - Peak Pulse (10/1000µs) | 298A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 2000pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 (DO-204AC) |
| Base Product Number | BZW06 |
Features of BZW06-5V8BRL
• Peak pulse power:
– 600 W (10/1000 μs)
– up to 4 kW (8/20 μs)
• Stand-off voltage range from 5.8 V to 376 V
• Unidirectional and bidirectional types
• Operating Tj
-max: 175 °C
• High power capability at Tj max.: up to 420 W (10/1000 µs)
• Lead finishing: matte tin plating
Applications of BZW06-5V8BRL
The BZW06 TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 600 W 10/1000 μs.
Environmental & Export Classifications of BZW06-5V8BRL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
