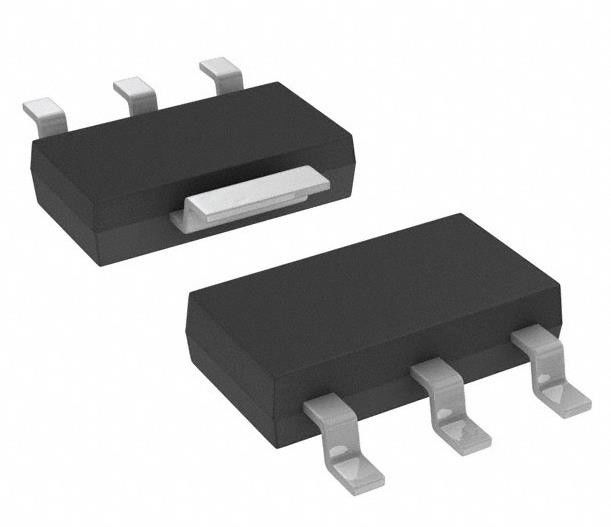

BTS3118N Power Switch/Driver 1:1 N-Channel 2.17A PG-SOT223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BTS3118N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Type: | General Purpose | Number Of Outputs: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | Low Side |
| Output Type: | N-Channel | Interface: | On/Off |
| Voltage - Load: | 42V (Max) | Voltage - Supply (Vcc/Vdd): | Not Required |
Product Description
BTS3118N Power Switch/Driver 1:1 N-Channel 2.17A PG-SOT223-4
Specifications of BTS3118N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Infineon Technologies |
| Series | HITFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 42V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.17A |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | BTS3118 |
Features of BTS3118N
Logic Level Input
Input Protection (ESD)
Thermal shutdown
• Green product (RoHS compliant)
Overload protection
Short circuit protection
Overvoltage protection
Current limitation
Analog driving possibl
Applications of BTS3118N
All kinds of resistive, inductive and capacitive loads in switching or linear applications
µC compatible power switch for 12 V DC applications
Replaces electromechanical relays and discrete circuit
Environmental & Export Classifications of BTS3118N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
