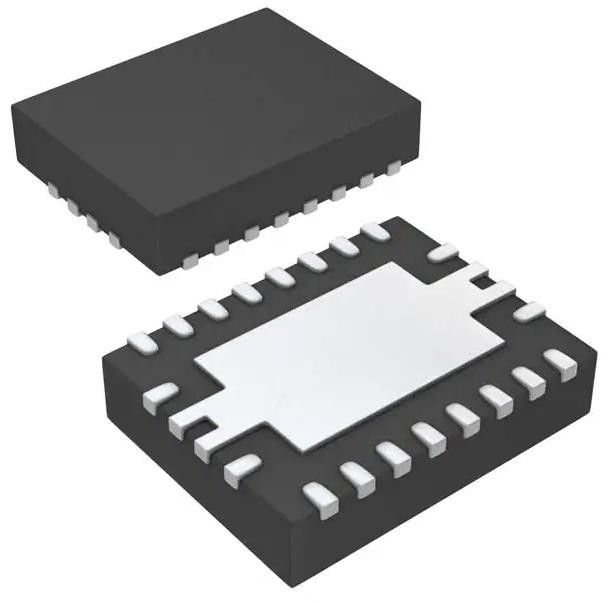

BQ24071RHLR Charger IC Lithium Ion/Polymer 20-VQFN (3.5x4.5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BQ24071RHLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Battery Chemistry: | Lithium Ion/Polymer | Number Of Cells: | 1 |
|---|---|---|---|
| Current - Charging: | Constant - Programmable | Programmable Features: | Current, Timer |
| Fault Protection: | Over Temperature, Reverse Current, Short Circuit | Charge Current - Max: | 1.5A |
| Battery Pack Voltage: | 4.2V | Voltage - Supply (Max): | 16V |
Product Description
BQ24071RHLR Charger IC Lithium Ion/Polymer 20-VQFN (3.5x4.5)
Specifications of BQ24071RHLR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Chargers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Reverse Current, Short Circuit |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 16V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| Base Product Number | BQ24071 |
Features of BQ24071RHLR
* Small 3.5-mm x 4.5-mm VQFN Package
* Designed for Single-Cell Li-lon- or Li-Polymer-Based Portable Applications
* Integrated Dynamic Power-Path Management(DPPM) Feature Allowing the AC Adapter toSimultaneously Power the System and Charge theBattery
* Power Supplement Mode Allows Battery toSupplement the AC Input Current
* Autonomous Power Source Selection (AC Adapteror BAT)
* Supports Up to 2 A Total Current
* Thermal Regulation for Charge Control
* Charge Status Outputs for LED or SystemInterface Indicates Charge and Fault Conditions
* Reverse Current, Short-Circuit, and ThermalProtection
* Power Good Status Outputs
* 4.4-V and 6-V Options for System OutputRegulation Voltage
Applications of BQ24071RHLR
• Smart Phones and PDAs
• MP3 Players
• Digital Cameras and Handheld Devices
• Internet Appliances
Environmental & Export Classifications of BQ24071RHLR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
