AP2204K-ADJTRG1 Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AP2204K-ADJTRG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 24V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.24V | Voltage - Output (Max): | 22V |
| Voltage Dropout (Max): | 0.5V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 50 µA | Current - Supply (Max): | 2.5 MA |
Product Description
AP2204K-ADJTRG1 Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA
Specifications of AP2204K-ADJTRG1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 22V |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | 60dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

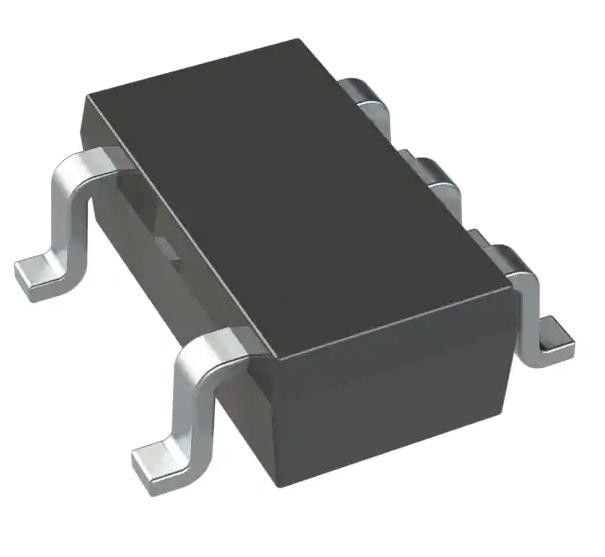

| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | AP2204 |
Features of AP2204K-ADJTRG1
* Wide Input Voltage Range: 2.6V to 24V
* Wide Output Voltage Range: 1.24V to 22V
* Excellent Ripple Rejection: 60dB@ f = 1kHz
* Low Dropout Voltage: VDROP = 100mV@ IOUT = 100µA
* Low Ground Current
* High Output Voltage Accuracy
* Compatible with Low ESR Ceramic Capacitor
* Excellent Line/Load Regulation
* Thermal Shutdown Function
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
Applications of AP2204K-ADJTRG1
The AP2204 series is a positive voltage regulator IC fabricated by high voltage EPNP process.
Environmental & Export Classifications of AP2204K-ADJTRG1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
