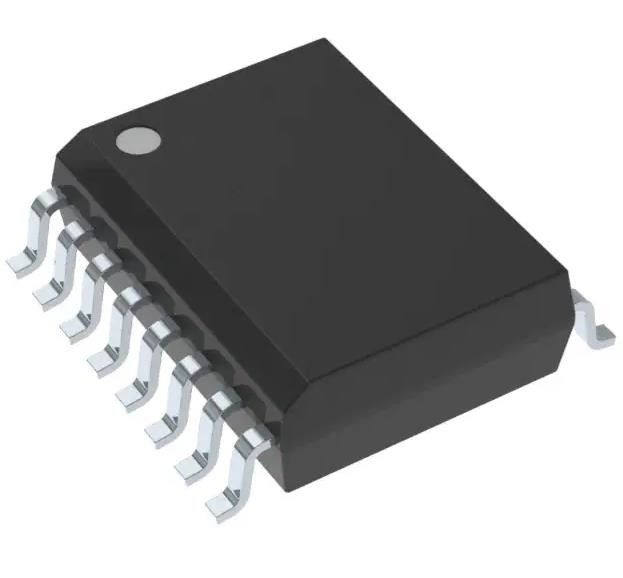

ADUM1401ARWZ General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADUM1401ARWZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Channels: | 4 | Inputs - Side 1/Side 2: | 3:1 |
|---|---|---|---|
| Channel Type: | Unidirectional | Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs | Data Rate: | 1Mbps |
| Propagation Delay TpLH / TpHL (Max): | 100ns, 100ns | Pulse Width Distortion (Max): | 40ns |
Product Description
ADUM1401ARWZ General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs
Specifications of ADUM1401ARWZ
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Analog Devices Inc. |
| Series | iCoupler® |
| Package | Tube |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3:1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADUM1401 |
Features of ADUM1401ARWZ
* Qualified for automotive applications
* Low power operation
- 5 V operation
- 1.0 mA per channel maximum at 0 Mbps to 2 Mbps
- 3.5 mA per channel maximum at 10 Mbps
- 31 mA per channel maximum at 90 Mbps
- 3 V operation
- 0.7 mA per channel maximum at 0 Mbps to 2 Mbps
- 2.1 mA per channel maximum at 10 Mbps
- 20 mA per channel maximum at 90 Mbps
* Bidirectional communication
* 3 V/5 V level translation
* High temperature operation: 125°C
* High data rate: dc to 90 Mbps (NRZ)
* Precise timing characteristics
- 2 ns maximum pulse width distortion
- 2 ns maximum channel-to-channel matching
* High common-mode transient immunity: >25 kV/μs
* Output enable function
* 16-lead SOIC wide body package
* RoHS-compliant models available
* Safety and regulatory approvals
- UL recognition: 2500 V rms for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A
- VDE Certificate of Conformity
- DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
- VIORM = 560 V peak
- TÜV approval: IEC/EN/UL/CSA 61010-1
Applications of ADUM1401ARWZ
* General-purpose multichannel isolation
* SPI interface/data converter isolation
* RS-232/RS-422/RS-485 transceivers
* Industrial field bus isolation
* Automotive systems
Environmental & Export Classifications of ADUM1401ARWZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
