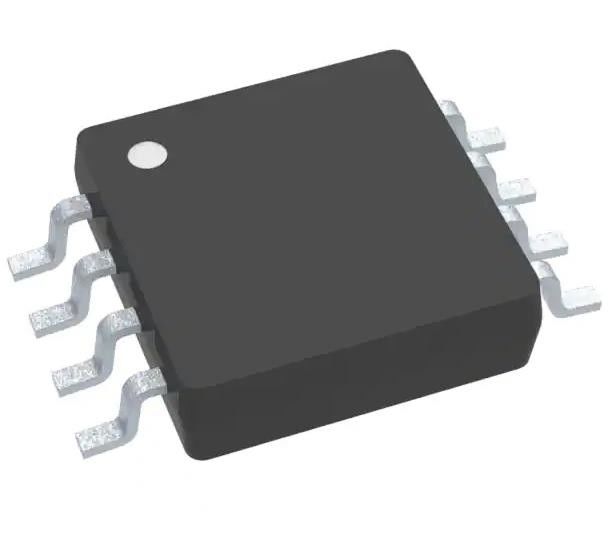

ADS7823EB/250 12 Bit Analog to Digital Converter 1 Input 1 SAR 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7823EB/250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 50k |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Single Ended |
| Data Interface: | I²C | Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
Product Description
ADS7823EB/250 12 Bit Analog to Digital Converter 1 Input 1 SAR 8-VSSOP
Specifications of ADS7823EB/250
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | I²C |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7823 |
Features of ADS7823EB/250
● 50kHz SAMPLING RATE
● NO MISSING CODES
● 2.7V TO 5V OPERATION
● FOUR-WORD FILO
● A0, A1 ADDRESS PINS
● I2C INTERFACE SUPPORTS: Standard, Fast, and High-Speed Modes
● MSOP-8 PACKAGE
Applications of ADS7823EB/250
● VOLTAGE SUPPLY MONITORING
● ISOLATED DATA ACQUISITION
● TRANSDUCER INTERFACE
● BATTERY-OPERATED SYSTEMS
● REMOTE DATA ACQUISITION
Environmental & Export Classifications of ADS7823EB/250
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
