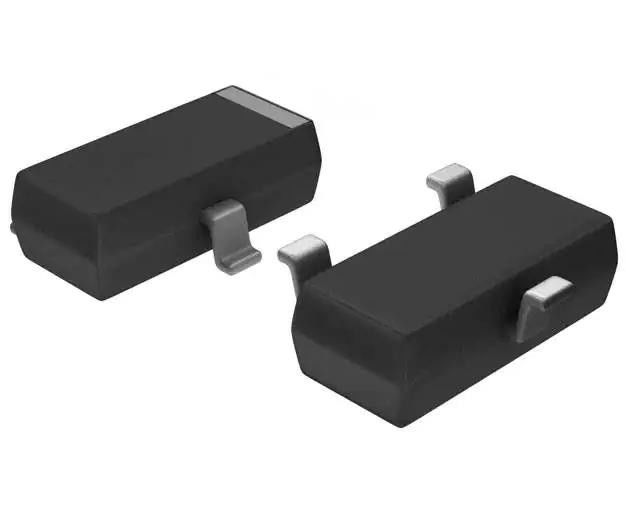

ADR5044BRTZ-REEL7 Shunt Voltage Reference IC Fixed 4.096V V ±0.1% 15 mA SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADR5044BRTZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Fixed |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 4.096V | Current - Output: | 15 MA |
| Tolerance: | ±0.1% | Temperature Coefficient: | 75ppm/°C |
| Noise - 0.1Hz To 10Hz: | 5.4µVrms | Noise - 10Hz To 10kHz: | 240µVrms |
Product Description
ADR5044BRTZ-REEL7 Shunt Voltage Reference IC Fixed 4.096V V ±0.1% 15 mA SOT-23-3
Specifications of ADR5044BRTZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Analog Devices Inc. |
| Series | ADR504 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 4.096V |
| Current - Output | 15 mA |
| Tolerance | ±0.1% |
| Temperature Coefficient | 75ppm/°C |
| Noise - 0.1Hz to 10Hz | 5.4µVrms |
| Noise - 10Hz to 10kHz | 240µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 60 µA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | ADR5044 |
Features of ADR5044BRTZ-REEL7
* Ultracompact SC70 and SOT-23 packages
* Low temperature coefficient: 75 ppm/°C (maximum)
* Pin compatible with LM4040/LM4050
* Initial accuracy: ±0.1%
* No external capacitor required
* Wide operating current range: 50 µA to 15 mA
* Extended temperature range: −40°C to +125°C
* Qualified for automotive applications
Applications of ADR5044BRTZ-REEL7
* Portable, battery-powered equipment
* Automotives
* Power supplies
* Data acquisition systems
* Instrumentation and process control
* Energy management
Environmental & Export Classifications of ADR5044BRTZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
