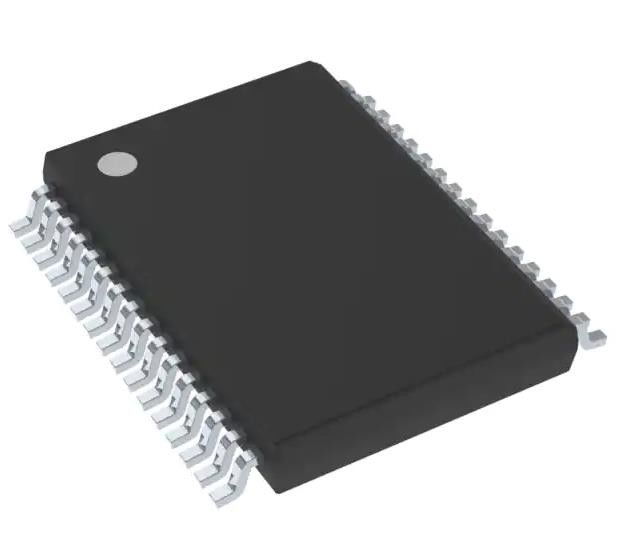

MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC08XS6421BEKR2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Type: | General Purpose | Number Of Outputs: | 4 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | High Side |
| Output Type: | N-Channel | Interface: | SPI |
| Voltage - Load: | 7V ~ 18V | Voltage - Supply (Vcc/Vdd): | 4.5V ~ 5.5V |
Product Description
MC08XS6421BEKR2 Power Switch/Driver 1:1 N-Channel 5.5A, 11A 32-HSOP
Specifications of MC08XS6421BEKR2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Rds On (Typ) | 8mOhm, 21mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Base Product Number | MC08XS6421 |
Features of MC08XS6421BEKR2
• Dual 8.0 mΩ and dual 21 mΩ high-side switches with high transient current capability
• 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output On and Off openload detections, thermal shut-down and prewarning, and fault reporting
• Output current monitoring with programmable synchronization signal and battery voltage feedback
• Limp home mode
• External smart power switch control
• Operating voltage is 7.08 V to 18 V with sleep current < 5.0 µA, extended mode from 6.08 V to 28 V
• -16 V reverse polarity and ground disconnect protections
• Compatible PCB foot print and SPI software driver among the family
Applications of MC08XS6421BEKR2
• Low-voltage automotive lighting
• Halogen lamps
• Incandescent bulbs
• Light-emitting diodes (LEDs)
• HID Xenon ballasts
Environmental & Export Classifications of MC08XS6421BEKR2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
