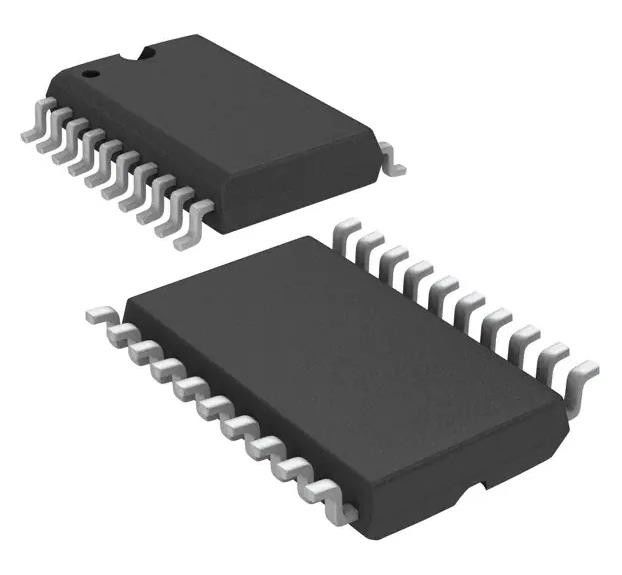

TPIC6B259DWR D-Type, Addressable 1 Channel 8:8 IC DMOS 20-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPIC6B259DWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | D-Type, Addressable | Circuit: | 8:08 |
|---|---|---|---|
| Output Type: | DMOS | Voltage - Supply: | 4.5V ~ 5.5V |
| Independent Circuits: | 1 | CDelay Time - Propagation: | 150ns |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
Product Description
TPIC6B259DWR D-Type, Addressable 1 Channel 8:8 IC DMOS 20-SOIC
Specifications of TPIC6B259DWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | Texas Instruments |
| Series | TPIC |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | D-Type, Addressable |
| Circuit | 8:08 |
| Output Type | DMOS |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 150ns |
| Current - Output High, Low | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | TPIC6B259 |
Features of TPIC6B259DWR
* Low rDS(on) . . . 5 Ω Typical
* Avalanche Energy . . . 30 mJ
* Eight Power DMOS-Transistor Outputs of 150-mA Continuous Current
* 500-mA Typical Current-Limiting Capability
* Output Clamp Voltage . . . 50 V
* Four Distinct Function Modes
* Low Power Consu
Applications of TPIC6B259DWR
This power logic 8-bit addressable latch controls open-drain DMOS-transistor outputs and is designed for general-purpose storage applications in digital systems. Specific uses include working registers, serial-holding registers, and decoders or demultiplexers. This is a multifunctional device capable of storing single-line data in eight addressable latches and 3-to-8 decoder or demultiplexer with active-low DMOS.
Environmental & Export Classifications of TPIC6B259DWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
