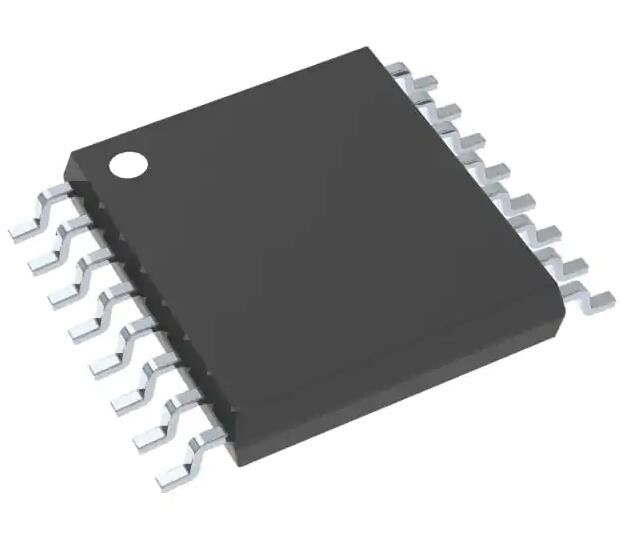

ADC108S022CIMTX/NOPB 10 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADC108S022CIMTX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Bits: | 10 | Sampling Rate (Per Second): | 200k |
|---|---|---|---|
| Number Of Inputs: | 8 | Input Type: | Single Ended |
| Data Interface: | SPI, DSP | Configuration: | MUX-S/H-ADC |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
Product Description
ADC108S022CIMTX/NOPB 10 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Specifications of TPD2E009DBZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADC108S022 |
Features of ADC108S022CIMTX/NOPB
* Eight Input Channels
* Variable Power Management
* Independent Analog and Digital Supplies
* SPIQSPIMICROWIRE/DSP compatible
* Packaged in 16-Lead TSSOP
Applications of ADC108S022CIMTX/NOPB
* Automotive Navigation
* Portable Systems
* Medical Instruments
* Mobile Communications
* Instrumentation and Control Systems
Environmental & Export Classifications of ADC108S022CIMTX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
