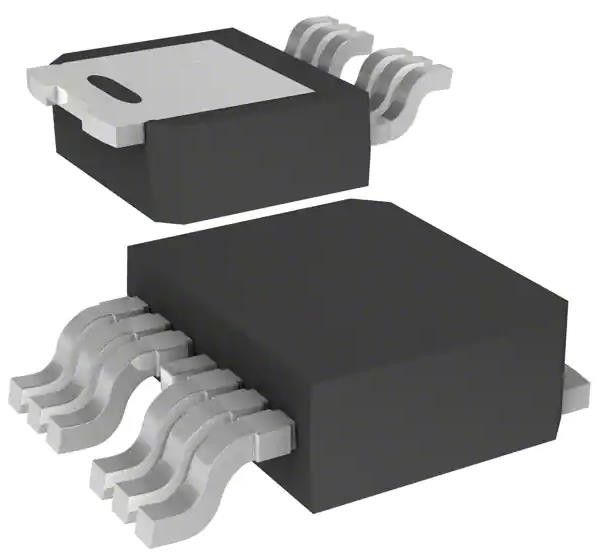

VN5E010MHTR-E Power Switch/Driver Integrated Circuit Chip 1:1 N-Channel 60A HPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VN5E010MHTR-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Low ESL | Capacitance: | 2.2 µF |
|---|---|---|---|
| Tolerance: | ±10% | Voltage - Rated: | 10V |
| Temperature Coefficient: | X6S | Operating Temperature: | -55°C ~ 105°C |
| Applications: | General Purpose | Mounting Type: | Surface Mount, MLCC |
Product Description
VN5E010MHTR-E Power Switch/Driver Integrated Circuit Chip 1:1 N-Channel 60A HPAK
Specifications of VN5E010MHTR-E
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | VIPower™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 60A |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | HPAK |
| Package / Case | TO-252-7, DPak (6 Leads + Tab) |
| Base Product Number | VN5E010 |
Features of C1005X6S1A225K050BC
■ General
– Inrush current active management by power limitation
– Very low standby current
– 3 V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
– Very low current sense leakage
■ Diagnostic functions
– Proportional load current sense
– High current sense precision for wide current range
– Current sense disable
– Output short to ground indication
– Overload and short to ground (power limitation) indication
– Thermal shutdown indication
■ Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Overtemperature shutdown with autorestart (thermal shutdown)
Applications of C1005X6S1A225K050BC
■ All types of resistive, inductive and capacitive loads
Environmental & Export Classifications of C1005X6S1A225K050BC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
