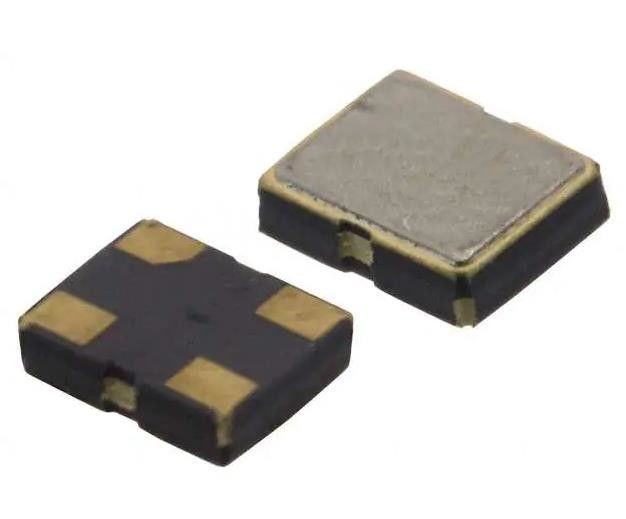

ECS-327KE-TR 32.768 kHz XO CMOS Oscillator 1.5V ~ 5.5V Enable/Disable 4-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ECS-327KE-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Base Resonator: | Crystal | Type: | XO (Standard) |
|---|---|---|---|
| Frequency: | 32.768 KHz | Function: | Enable/Disable |
| Output: | CMOS | Voltage - Supply: | 1.5V ~ 5.5V |
| Frequency Stability: | -130ppm, +30ppm | Operating Temperature: | -40°C ~ 85°C |
Product Description
ECS-327KE-TR 32.768 kHz XO CMOS Oscillator 1.5V ~ 5.5V Enable/Disable 4-SMD
Specifications of ECS-327KE-TR
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Oscillators | |
| Mfr | ECS Inc. |
| Series | ECS-327KE |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 32.768 kHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.5V ~ 5.5V |
| Frequency Stability | -130ppm, +30ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 1.5µA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Current - Supply (Disable) (Max) | 0.25µA |
Features of ECS-327KE-TR
• Low current 1.5 μA
• 3.2 x 2.5 mm Footprint
• 1.5 to 5.5V
• PbFree/RoHS Compliant
• -40 ~ +85°C Operating Temperature
Applications of ECS-327KE-TR
ECS-327KE 32.768 KHz low power CMOS subminiature SMD oscillator. Ideal for today’s high density low power applications.
Environmental & Export Classifications of ECS-327KE-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
