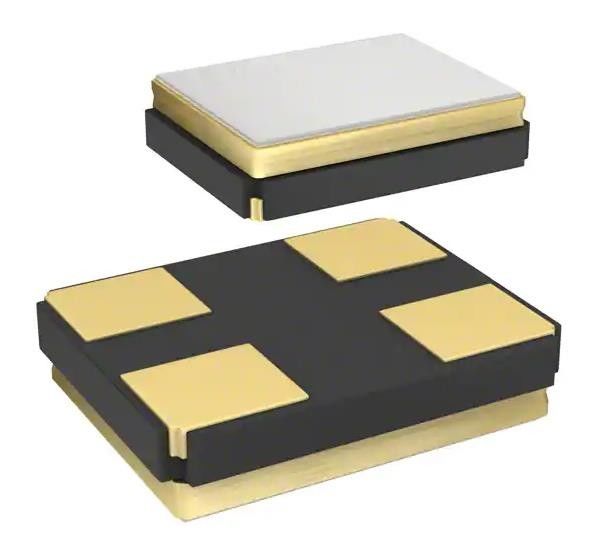

425F22A024M0000 24 MHz ±20ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 425F22A024M0000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | MHz Crystal | Frequency: | 24 MHz |
|---|---|---|---|
| Frequency Stability: | ±20ppm | Frequency Tolerance: | ±20ppm |
| Load Capacitance: | 10pF | ESR (Equivalent Series Resistance): | 80 Ohms |
| Operating Mode: | Fundamental | Operating Temperature: | -20°C ~ 70°C |
Product Description
425F22A024M0000 24 MHz ±20ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Specifications of 425F22A024M0000
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Mfr | CTS-Frequency Controls |
| Series | 425 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | MHz Crystal |
| Frequency | 24 MHz |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 10pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Features of 425F22A024M0000
* Hermetic Ceramic Surface Mount Package
* Fundamental Crystal Design
* Frequency Range 12 – 80MHz
* Frequency Tolerance, ±30ppm Standard
* Frequency Stability, ±30ppm Standard
* Operating Temperature Range to -40°C to +105°C
* Tape and Reel Packaging, EIA-481
Applications of 425F22A024M0000
* IoT and IIoT Applications
* Wireless Communications
* FPGA/Microcontrollers
* USB Interfaces
* Computer Peripherals
* Portable Equipment
* Test and Measurement
* M2M Communications
* Wearables
Environmental & Export Classifications of 425F22A024M0000
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
