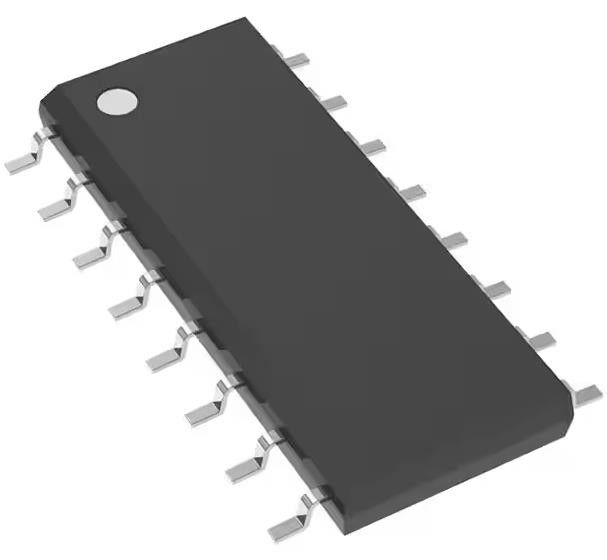

CD4098BM96 CMOS Dual Monostable Multivibrator 100 Ns 16-SOIC Integrated Circuit Chip
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD4098BM96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Monostable | Independent Circuits: | 2 |
|---|---|---|---|
| Schmitt Trigger Input: | No | Propagation Delay: | 100 Ns |
| Current - Output High, Low: | 6.8mA, 6.8mA | Voltage - Supply: | 3 V ~ 18 V |
| Operating Temperature: | -55°C ~ 125°C | Supplier Device Package: | 16-SOIC |
| High Light: | CD4098BM96,CD4098BM96 Integrated Circuit Chip,CMOS Dual Monostable Multivibrator |
||
Product Description
CD4098BM96 Monostable Multivibrator 100 ns 16-SOIC Integrated Circuit Chip
IC MULTIVIBRATOR 100NS 16SOIC
Specifications of CD4098BM96
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Multivibrators | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Monostable |
| Independent Circuits | 2 |
| Schmitt Trigger Input | No |
| Propagation Delay | 100 ns |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3 V ~ 18 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | CD4098 |
Features of CD4098BM96
* Retriggerable/resettable capability
* Trigger and reset propagation delaysindependent of RX,Cx
* Triggering from leading or trailing edge
* Q and O buffered outputs available
* Separate resets
* Wide range of output-pulse widths
* 100% tested for maximum quiescentcurrent at 20 V
* Maximum input current of 1 pA at18 V over full package-temperaturerange; 100 nA at 18 V and 25°C
* Noise margin (full package-temperaturerange):
- 1Vat VDD=5V
- 2 V at VDD=10 V
- 2.5 V at VDD=15 V
* 5-V 10-V, and 15-V parametric ratings
* Standardized,symmetrical outputcharacteristics
* Meets all requirements of JEDECTentatlve Standard No.13B,"Stand-ard Specifications for Description of B”Series CMOS Devices."
Applications of CD4098BM96
* Pulse delay and timing
* Pulse shaping
* Astable multivibrator
Environmental & Export Classifications of CD4098BM96
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
