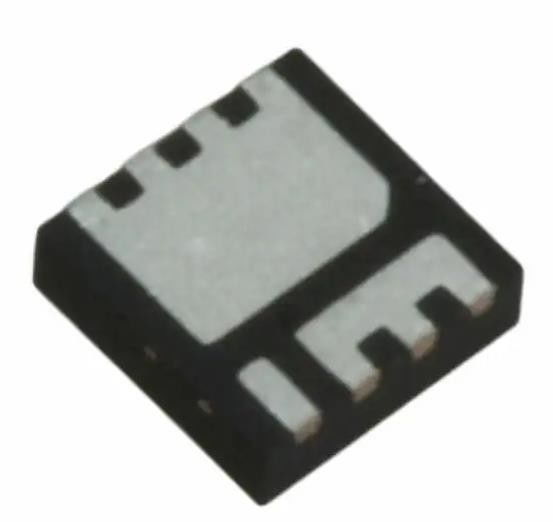

IRFH3702TRPBF N-Channel MOSFET IC 30 V 16A 42A 2.8W Single FETs MOSFETs 8-PQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IRFH3702TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 30 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 16A (Ta), 42A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 7.1mOhm @ 16A, 10V | Vgs(th) (Max) @ Id: | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs: | 14 NC @ 4.5 V | Vgs (Max): | ±20V |
| High Light: | IRFH3702TRPBF,N-Channel MOSFET IC 30 V,IRFH3702TRPBF MOSFET IC |
||
Product Description
IRFH3702TRPBF N-Channel 30 V 16A 42A 2.8W Single FETs MOSFETs 8-PQFN
MOSFET N-CH 30V 16A/42A 8PQFN
Specifications of LM5116MHX/NOPB
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | HEXFET® |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.1mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (3x3) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | IRFH3702 |
Features of LM5116MHX/NOPB
Low RDS(ON)
Very Low Gate Charge
Low Junction to PCB Thermal Resistance
Fully Characterized Avalanche Voltage and Current
100% Tested for RG
Lead-Free (Qualified up to 260°C Reflow)
RoHS compliant (Halogen Free)
Applications of LM5116MHX/NOPB
Synchronous Buck Converter for Computer Processor Power
Isolated DC to DC Converters for Network and Telecom
Buck Converters for Set-Top Boxes
Environmental & Export Classifications of LM5116MHX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
