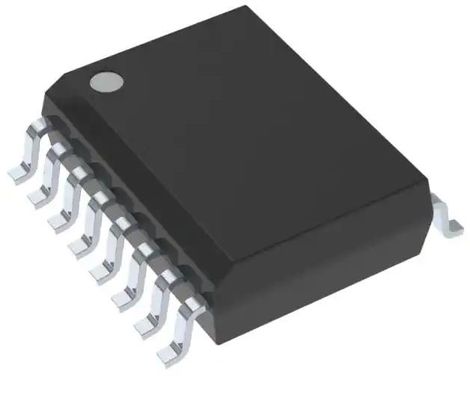

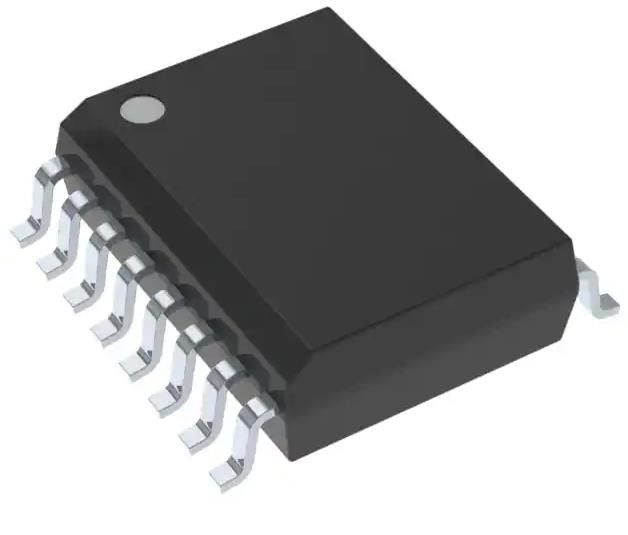

ISO7641FCDWR General Purpose Digital Isolator 2500Vrms 4 Channel 25Mbps 25kV/µS
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7641FCDWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Channels: | 4 | Inputs - Side 1/Side 2: | 3/1 |
|---|---|---|---|
| Channel Type: | Unidirectional | Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs | Data Rate: | 25Mbps |
| Propagation Delay TpLH / TpHL (Max): | 28ns, 28ns | Pulse Width Distortion (Max): | 3ns |
| Rise / Fall Time (Typ): | 2.8ns, 2.9ns | Voltage - Supply: | 3V ~ 5.5V |
| High Light: | ISO7641FCDWR,ISO7641FCDWR Digital Isolator |
||
Product Description
ISO7641FCDWR General Purpose Digital Isolator 2500Vrms 4 Channel 25Mbps 25kV/µs
DGTL ISO 2500VRMS 4CH GP 16SOIC
Specifications of ISO7641FCDWR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 28ns, 28ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2.8ns, 2.9ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISO7641 |
Features of ISO7641FCDWR
• Signaling Rate: 150 Mbps (M-Grade), 25 Mbps (C-Grade)
• Robust Design with Integrated Noise Filter (C-Grade)
• Low Power Consumption, Typical ICC per Channel (3.3-V Supplies):
– ISO7631FM: 2 mA at 10 Mbps
– ISO7631FC: 1.5 mA at 10 Mbps
– ISO7641FC: 1.3 mA at 10 Mbps
• Extremely-Low ICC_disable (C-Grade)
• Low Propagation Delay: 7 ns Typical (M-Grade)
• Output Defaults to Low-State in Fail-Safe Mode
• Wide Temperature Range: –40°C to 125°C
• 50 KV/µs Transient Immunity, Typical
• Long Life With SiO2 Isolation Barrier
• Operates From 2.7-V (M-Grade), 3.3-V and 5-V Supply and Logic Levels
• 2.7-V (M-Grade), 3.3-V and 5-V Level Translation
• Wide Body SOIC-16 Package
• Safety and Regulatory Approvals
– 2500 VRMS Isolation for 1 Minute per UL 1577
– 4242 VPK Basic Insulation per DIN V VDE V 0884-10 and DIN EN 61010-1
– CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards
– CQC Certification per GB4943.1-2011
– TUV 3000 VRMS Reinforced Insulation according to EN/UL/CSA 60950-1 and EN/UL/CSA 61010-1
Applications of ISO7641FCDWR
• Optocoupler Replacement in:
– Industrial Fieldbus
– Profibus
– Modbus
– DeviceNet™ Data Buses
– Servo Control Interface
– Motor Control
– Power Supplies
– Battery Packs
Environmental & Export Classifications of ISO7641FCDWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
