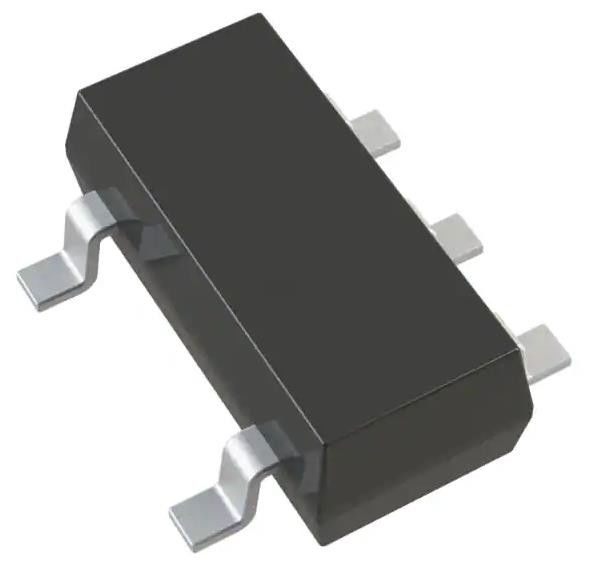

LT1716CS5#TRMPBF Comparator General Purpose Push-Pull, Rail-to-Rail TSOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1716CS5#TRMPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Elements: | 1 | Output Type: | Push-Pull, Rail-to-Rail |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±): | 2.7V ~ 44V, ±1.35V ~ 22V | Voltage - Input Offset (Max): | 1.6mV @ 5V |
| Current - Input Bias (Max): | 0.05µA @ 5V | Current - Output (Typ): | 20mA @ 5V |
| Current - Quiescent (Max): | 60µA | CMRR, PSRR (Typ): | 110dB CMRR, 110dB PSRR |
| High Light: | LT1716CS5#TRMPBF,LT1716CS5#TRMPBF Comparator |
||
Product Description
LT1716CS5#TRMPBF Comparator General Purpose Push-Pull, Rail-to-Rail TSOT-23-5
IC COMPARATOR 1 GEN PUR TSOT23-5
Specifications of LT1716CS5#TRMPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Comparators | |
| Mfr | Analog Devices Inc. |
| Series | Over-The-Top® |
| Package | Tape & Reel (TR) |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 44V, ±1.35V ~ 22V |
| Voltage - Input Offset (Max) | 1.6mV @ 5V |
| Current - Input Bias (Max) | 0.05µA @ 5V |
| Current - Output (Typ) | 20mA @ 5V |
| Current - Quiescent (Max) | 60µA |
| CMRR, PSRR (Typ) | 110dB CMRR, 110dB PSRR |
| Propagation Delay (Max) | 5.5µs |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT1716 |
Features of RT0603BRD071K21L
* Operates from 2.7V to 44V
* Over-The-Top®: Input Common Mode Range Extends 44V Above V–, Independent of V+
* Micropower: 35µA IQ
* Offset Voltage: 1.5mV Max
* Valid Output with Either Input 5V Below V–
* Rail-to-Rail Output Swing
* Output Can Drive Loads Above V+
* Internal Pull-Up Current
* –40°C to 125°C Operating Temperature Range
* Low Profile (1mm) SOT-23 (ThinSOT™) Package
* AEC-Q100 Qualified for Automotive Applications
Applications of RT0603BRD071K21L
All general purpose application
Environmental & Export Classifications of LT1716CS5#TRMPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
