LM319MX / NOPB Comparator General Purpose DTL Open-Collector Open-Emitter
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM319MX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | DTL, Open-Collector, Open-Emitter, RTL, TTL | Voltage - Supply, Single/Dual (±): | 5V ~ 36V, ±2.5V ~ 18V |
|---|---|---|---|
| Voltage - Input Offset (Max): | 8mV @ ±15V | Current - Input Bias (Max): | 1µA @ ±15V |
| Current - Output (Typ): | - | Current - Quiescent (Max): | 12.5mA |
| Operating Temperature: | 0°C ~ 70°C | Supplier Device Package: | 14-SOIC |
| High Light: | LM319MX / NOPB,LM319MX / NOPB Comparator |
||
Product Description
LM319MX / NOPB Comparator General Purpose DTL Open-Collector Open-Emitter
IC COMPARATOR 2 GEN PUR 14SOIC
Specifications of LM319MX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Type | DTL, Open-Collector, Open-Emitter, RTL, TTL |
| Voltage - Supply, Single/Dual (±) | 5V ~ 36V, ±2.5V ~ 18V |
| Voltage - Input Offset (Max) | 8mV @ ±15V |
| Current - Input Bias (Max) | 1µA @ ±15V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 12.5mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Hysteresis | - |
| Operating Temperature | 0°C ~ 70°C |

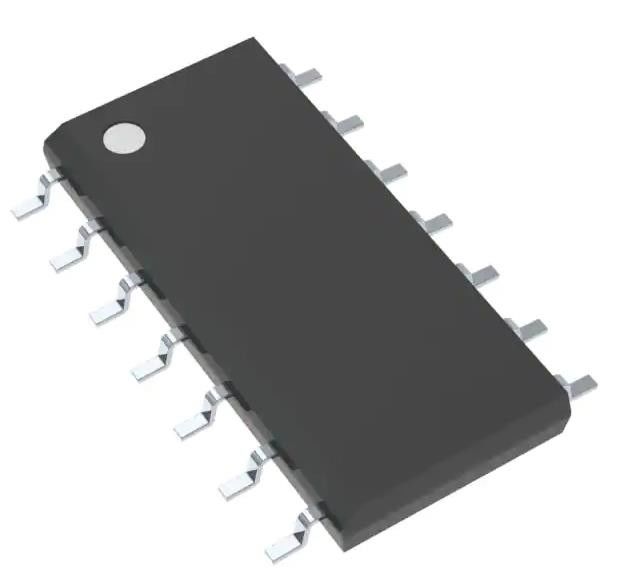

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Base Product Number | LM319 |
Features of LM319MX/NOPB
• Two Independent Comparators
• Operates from a Single 5-V Supply
• Typically 80-ns Response Time at ±15 V
• Minimum Fan-out of 2 Each Side
• Maximum Input Current of 1 μA Over Temperature
• Inputs and Outputs can be Isolated from System Ground
• High Common-Mode Slew Rate
Applications of LM319MX/NOPB
The LM119 series are precision high-speed dual comparators fabricated on a single monolithic chip. They are designed to operate over a wide range of supply voltages down to a single 5-V logic supply and ground. They have higher gain and lower input currents than devices such as the LM710. The uncommitted collector of the output stage makes the LM119 compatible with RTL, DTL, and TTL, as well as capable of driving lamps and relays at currents of up to 25 mA.
Environmental & Export Classifications of LM319MX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
