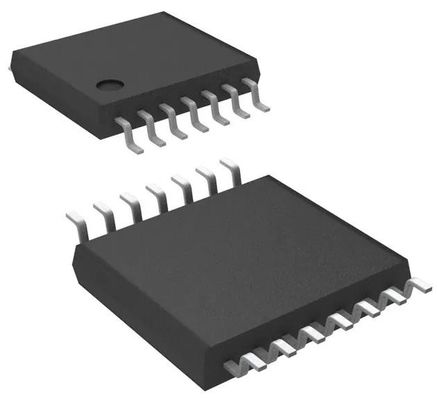

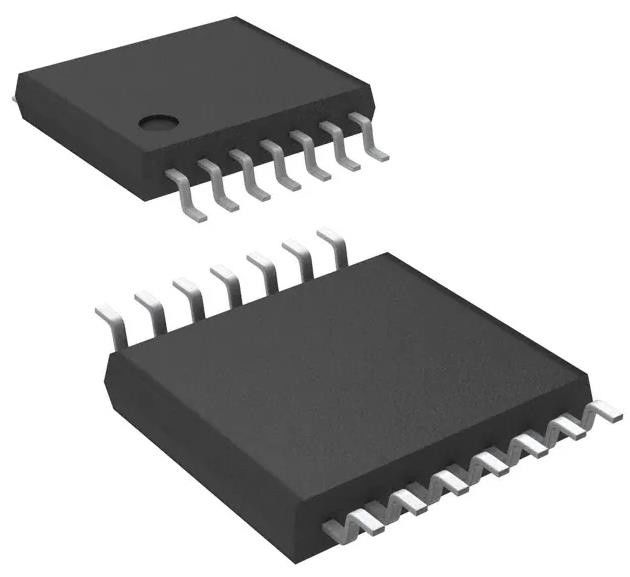

MC74LCX14DTR2G Gate Inverter IC 6 Channel Schmitt Trigger 14-TSSO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC74LCX14DTR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 6 | Number Of Inputs: | 1 |
| Voltage - Supply: | 2V ~ 3.6V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 24mA, 24mA | Input Logic Level - Low: | 0.4V ~ 0.6V |
| Input Logic Level - High: | 1.7V ~ 2.2V | Max Propagation Delay @ V, Max CL: | 6.5ns @ 3.3V, 50pF |
| High Light: | MC74LCX14DTR2G,MC74LCX14DTR2G Gate Inverter IC |
||
Product Description
MC74LCX14DTR2G Inverter IC 6 Channel Schmitt Trigger 14-TSSO
IC INVERTER 6CH 1-INP 14TSSOP
Specifications of MC74LCX14DTR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 74LCX |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.4V ~ 0.6V |
| Input Logic Level - High | 1.7V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74LCX14 |
Features of MC74LCX14DTR2G
* Designed for 2.3 V to 3.6 V VCC Operation
* 5.0 V Tolerant Inputs − Interface Capability with 5.0 V TTL Logic
* LVTTL Compatible
* LVCMOS Compatible
* 24 mA Balanced Output Sink and Source Capability
* Near Zero Static Supply Current (10 A) Substantially Reduces System Power Requirements
* Latchup Performance Exceeds 500 mA
* Current Drive Capability is 24 mA at Source/Sink
* Pin and Function Compatible with Other Standard Logic Families
* ESD Performance: Human Body Model >2000 V Machine Model >100 V
* Chip Complexity: 41 Equivalent Gates
* These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of MC74LCX14DTR2G
The MC74LCX14 is a high performance hex inverter with Schmitt−Trigger inputs operating from a 2.3 to 3.6 V supply
Environmental & Export Classifications of MC74LCX14DTR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
