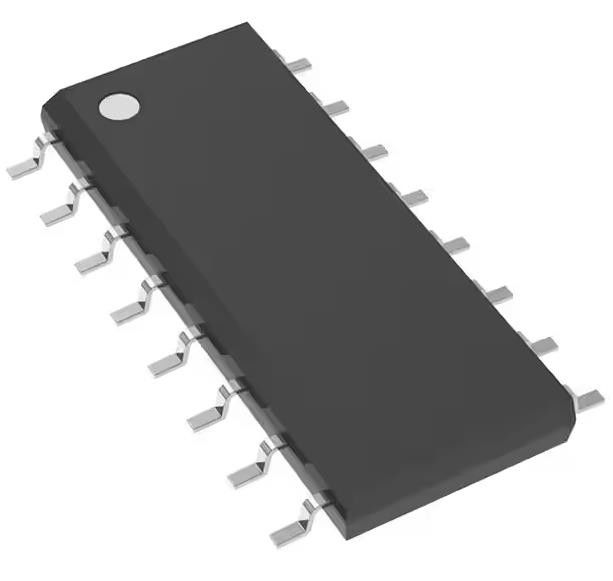

CD4099BM96 D-Type CMOS 8-Bit Addressable Latch 1 Channel 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD4099BM96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | D-Type, Addressable | Circuit: | 1:08 |
|---|---|---|---|
| Output Type: | Standard | Voltage - Supply: | 3V ~ 18V |
| Independent Circuits: | 1 | Delay Time - Propagation: | 50ns |
| Current - Output High, Low: | 6.8mA, 6.8mA | Operating Temperature: | -55°C ~ 125°C |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) | Supplier Device Package: | 16-SOIC |
| High Light: | CD4099BM96,CMOS 8-Bit Addressable Latch |
||
Product Description
CD4099BM96 D-Type, Addressable 1 Channel 1:8 IC Standard 16-SOIC
IC 8BIT ADDRESSABL LATCH 16-SOIC
Specifications of CD4099BM96
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Latches | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | D-Type, Addressable |
| Circuit | 1:08 |
| Output Type | Standard |
| Voltage - Supply | 3V ~ 18V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 50ns |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | CD4099 |
Features of CD4099BM96
* Serial data inputActive parallel output
* Storage register capabilityMaster ciear
* Can function as demultiplexer
* Standardized,symmetrical output characteristics
* 100% tested for quiescent current at 20 V
* Maximum input current of 1 pA at 18 V(full package-temperature range), 100 nAat 18 V and 25°C
* Noise margin (full package-temperaturerange) = 1 V at VDD=5 V,2 V at VDD=10 V,2.5 Vat VDD - 15 V
* 5-V, 10-V, and 15-V parametric ratings
* Meets all requirements of-JEDEC TentativeStandard No.13B,"Standard Specificatioinsfor Description of "B’Sefies CMOS Devices"
Applications of CD4099BM96
* Multi-line decodersm
* A/D converters
Environmental & Export Classifications of CD4099BM96
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
